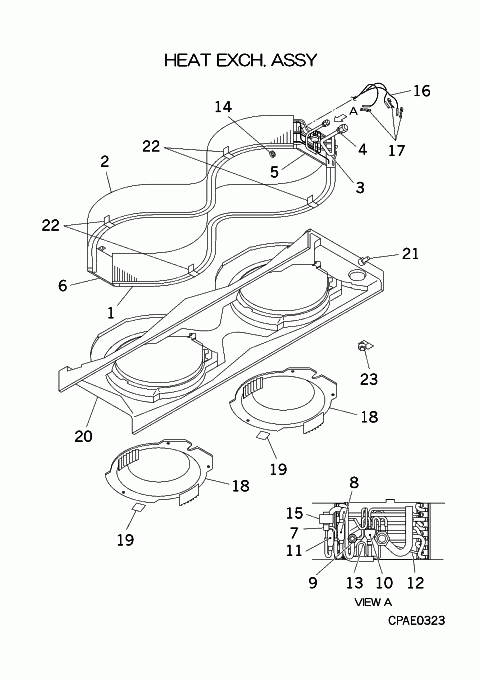

FDTW140KXE6 HEAT EXCH. ASSY

FDTW140KXE6 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJB311A201B
HEAT EXCH(AIR)
Contact
[1-17] Contact
PJB301A220D
HEAT EXCH ASSY(AIR
Contact
[2] Contact
PJB311A201C
HEAT EXCH(AIR)
Contact
[3-4] Contact
PJB315D206M
HEADER ASSY,GAS
Contact
[4] Contact
SSA323F012J
UNION
Contact
[5] Contact
PJB141A201
PLATE,BAFFLE
Contact
[6] Contact
PJB141A202
PLATE,BAFFLE
Contact
[7] In Stock
SSA387F045A
VALVE EXPA
Notes: SM, EEVC
[8] In Stock
SSA357A059B
STRAINER
[9] Contact
SSA323F012A
UNION
Contact
[10] Contact
SSA315A279
DISTRIBUTOR
Contact
[10-13] Contact
PJB315A226A
DISTRI ASSY
Contact
[11] In Stock
SSA357A059T
STRAINER
[12] Contact
PJB315B409
CAPILLARY
Contact
Notes: !D3.5XD5.0 L170
[13] Contact
PJB315B410
CAPILLARY
Contact
Notes: !D3.5XD5.0 L300
[14] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[15] In Stock
SSA382F212K
COIL,SOLENOID
Notes: FOR SM, FOR SM2‚ (HEATING), 5 CABLE - RED PLUG Show Image
SSA382F212K
[16] Contact
PSA551A011AA
SENSOR ASSY(TEMP)
Contact
Notes: THI-R1,2,3
[17] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[18] Contact
PJB433A202
BELLMOUTH
Contact
[19] Contact
RSA011H005B
LABEL,NOTICE
Contact
[20-21] Contact
PJB454A204A
PAN DRAIN
Contact
[21] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[22] Contact
PJA116A508A
BRACKET
Contact
[23] Contact
PJA536A501D
SWITCH ASSY,FLOAT
Contact
Notes: FS
