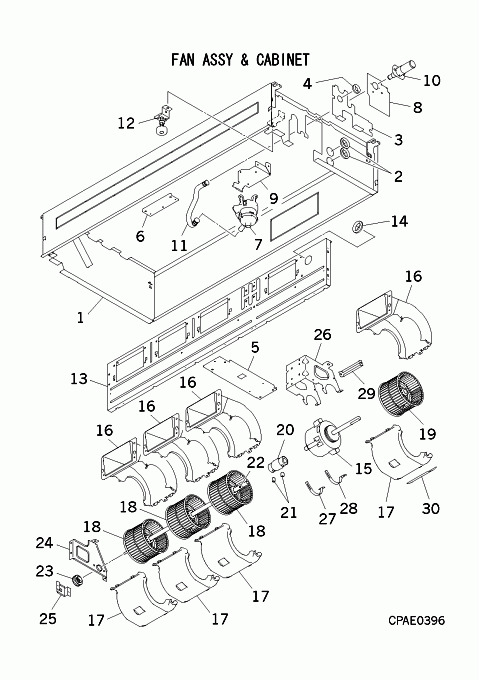

FDTS71KXZE3-W/1 FAN ASSY AND CABINET

FDTS71KXZE3-W/1 FAN ASSY AND CABINET

FDTS71KXZE3-W/1 FAN ASSY AND CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact
PJC100A300B
CABINET ASSY
Contact
Notes: !
[2] In Stock
S751W30X
GROMMET V14
Notes: D35, ***SOLD INDIVIDUALLY*** Show Image
S751W30X
[3-4] Contact
PJH132A005A
LID ASSY
Contact
[4] Contact
S751W20
GROMMET 5K1
Contact
Notes: D25
[5] Contact
PJC119A303
PLATE ASSY(F_PANEL
Contact
[6] Contact
PJC119A302
PLATE ASSY(F_PANEL
Contact
[7] In Stock
SSA451A012C
PUMP,DRAIN
Show Image
SSA451A012C
[7-11] Contact
PJH451A003B
PUMP ASSY,DRAIN
Contact
[8] Contact
PJH132A004
LID,PUMP
Contact
[9] Contact
PJH116A011
BRACKET(PUMP)
Contact
[10] In Stock
PSA422C003
SOCKET
[11] In Stock
SSA423A100
HOSE,DRAIN
[12] Contact
PJG536A001A
SWITCH ASSY,FLOAT
Contact
Notes: FS
[13-14] Contact
PJH141A005B
PLATE ASSY,BAFFLE
Contact
Substitute: PJH141A005C
[14] In Stock
S751W30X
GROMMET V14
Notes: D35, ***SOLD INDIVIDUALLY*** Show Image
S751W30X
[15] Contact
SSA512T125F
MOTOR,DC
Contact
[16] Out of Stock
PJH433B001
CASING(U)
[17] Out of Stock
PJH433B003
CASING ASSY(L)
[18] In Stock
SSA431D095A
IMPELLER
Notes: LEFT, Fan Barrel / Fan Scroll
[19] In Stock
SSA431D096A
IMPELLER
Notes: RIGHT Show Image
SSA431D096A
[20-21] In Stock
PJH272A001
COUPLING
[21] In Stock
SSA912F015
SET,SCREW(SCH-CP)
Notes: 1pc ONLY
[22] In Stock
PJH271A002
SHAFT
[23] Contact
SSA923C137
BEARING,PLANE
Contact
Notes: QUALITY-IMPROVED
[24] Contact
PJH116A005
BRACKET(B_B)
Contact
[25] In Stock
PJH116A006
BRACKET (BEARING)
[26] In Stock
PJH116A003
BRACKET MOTOR
[27] In Stock
PFA116A207G
BRACKET
Notes: LEFT Show Image
PFA116A207G
[28] In Stock
PFA116A207H
BRACKET
Notes: RIGHT Show Image
PFA116A207H
[29] In Stock
PJG119A002
PLATE
Show Image
PJG119A002
[30] In Stock
PSA011H046
LABEL,NOTICE
[31] In Stock
PSA423A004B
HOSE ASSY,DRAIN
Notes: SEE C: CONTROL & PARTS SET Show Image
PSA423A004B
[32] In Stock
V300Y32
HOSE CLAMP
Notes: SEE C: CONTROL & PARTS SET
SKU: FDTS71KXZE3-W/1 FAN ASSY AND CABINET Category:
