FDTS71KXZE3-W/1 CONTROL AND PARTS SET

FDTS71KXZE3-W/1 CONTROL AND PARTS SET

FDTS71KXZE3-W/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

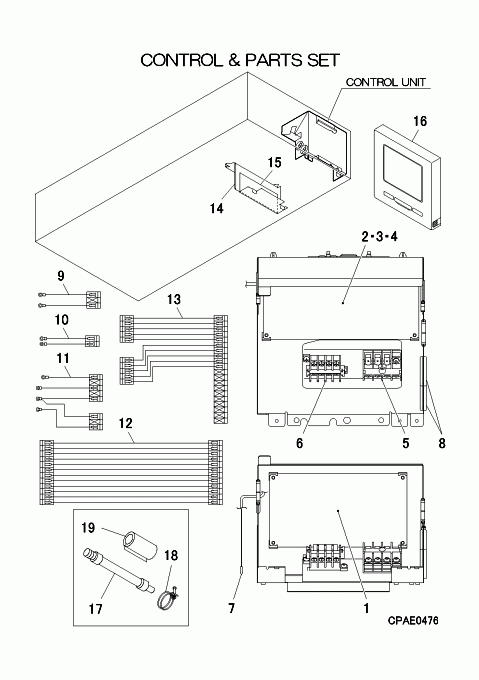

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJA505A229RC
PWB ASSY(CONTROL)
Contact
Notes: ONLY FOR SUPPLY PARTS
[1-13] Contact
PJC501A301GK
CONTROL UNIT
Contact
Notes: !
[2-4] In Stock
PJA505A230PA
PWB ASSY (POWER)
Notes: ONLY FOR SUPPLY PARTS, POWER PCB. PLUGS INTO FAN MOTOR
[3] In Stock
SSA564A149AF
FUSE (CURRENT)
Notes: F1,2 3.15A
[4] In Stock
SSA564A149AC
FUSE(CURRENT)
Notes: F3 2A, 2 amp fuse
[5] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[6] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[7] Contact
PSA551A001JC
SENSOR ASSY
Contact
Notes: THI-A
[8] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[9] Contact
PJF504A006L
WIRING(TB,XY)
Contact
Notes: TB2 X,TB2 Y- CNB PWB
[10] Contact
PJF504A010J
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[11] Contact
PJF504A036P
WIRING(TB,POWER)
Contact
Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB
[12] Contact
PJG504A024
WIRING(PWB)
Contact
Notes: CNW2 PWB- CNW1 PWB
[13] Contact
PJC504A301
WIRING(LM)
Contact
Notes: CNJ3,CNJ2- CNJ
[14] Contact
PJH142A010
LID,CONTROL BOX
Contact
[15] Contact
PJC011G307
LABEL,WIRING
Contact
Notes: !
[16] Contact
PJZ502A031AH
CONTROL ASSY,REMOT
Contact
Notes: !RC-EX3D
[17] In Stock
PSA423A004B
HOSE ASSY,DRAIN
Show Image
PSA423A004B
[17-19] Contact
PJF008A001CB
PARTS SET
Contact
[18] In Stock
V300Y32
HOSE CLAMP
[19] In Stock
SSA153B016BA
INSULATION,PIPE
Show Image
SSA153B016BA
[20] Contact
PJC011F316G
LABEL,MODEL NAME
Contact
Notes: !
SKU: FDTS71KXZE3-W/1 CONTROL AND PARTS SET Category:
