FDTS71KXE6F/F FAN ASSY AND CABINET

FDTS71KXE6F/F FAN ASSY AND CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

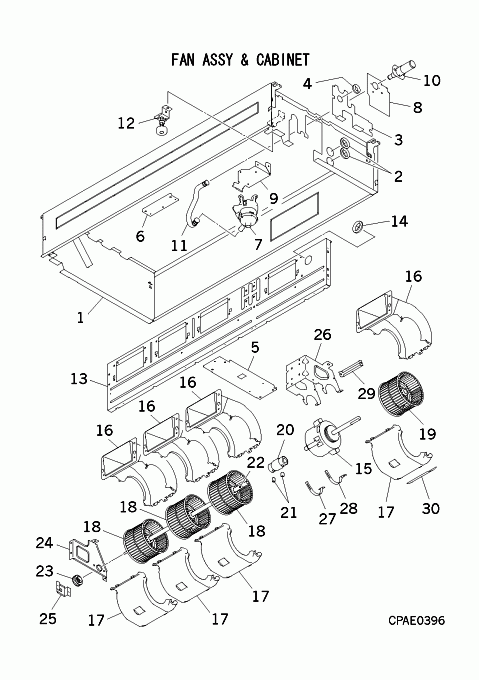

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact
PJC100A300A
CABINET ASSY
Contact
Notes: !
[2] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[3-4] Contact
PJH132A005A
LID ASSY
Contact
[4] Contact
S751W20
GROMMET 5K1
Contact
Notes: D25
[5] Contact
PJC119A303
PLATE ASSY(F_PANEL
Contact
[6] Contact
PJC119A302
PLATE ASSY(F_PANEL
Contact
[7] In Stock
SSA451A012C
PUMP,DRAIN
SSA451A012C
[7-11] Contact
PJH451A003A
PUMP ASSY,DRAIN
Contact
[8] Contact
PJH132A004
LID,PUMP
Contact
[9] Contact
PJH116A011
BRACKET(PUMP)
Contact
[10] In Stock
SSA422C088
SOCKET
Notes: LENGTH 11.5CM Show Image
SSA422C088
[11] In Stock
SSA423A100
HOSE,DRAIN
[12] Contact
PJG536A001A
SWITCH ASSY,FLOAT
Contact
Notes: FS
[13-14] Contact
PJH141A005B
PLATE ASSY,BAFFLE
Contact
Substitute: PJH141A005C
[14] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[15] In Stock
SSA512T125C
MOTOR DC
[16] In Stock
PJH433B001
CASING(U)
[17] In Stock
PJH433B003
CASING ASSY(L)
[18] In Stock
SSA431D095A
FAN
Notes: LEFT
[19] In Stock
SSA431D096A
IMPELLER
Notes: RIGHT Show Image
SSA431D096A
[20-21] In Stock
PJH272A001
COUPLING
[21] Contact
SSA912F015
SET,SCREW(SCH-CP)
Contact
Notes: 1pc ONLY
[22] Contact
PJH271A002
SHAFT
Contact
Substitute: PJH271A002B
[23] In Stock
SSA923C136
BEARING, PLANE
Notes: END BEARING Show Image
SSA923C136
[24] Contact
PJH116A005
BRACKET(B_B)
Contact
[25] In Stock
PJH116A006
BRACKET (BEARING)
[26] In Stock
PJH116A003
BRACKET MOTOR
[27] In Stock
PJG116A063
BRACKET(MOTOR)
Notes: LEFT Show Image
PJG116A063
[28] In Stock
PJG116A063A
BRACKET(MOTOR)
Notes: RIGHT Show Image
PJG116A063A
[29] In Stock
PJG119A002
PLATE
[30] Contact
PSA011H046
LABEL,NOTICE
Contact
[31] In Stock
SSA423A101A
HOSE,DRAIN
Notes: SEE D: CONTROL & PARTS SET, SEE C: CONTROL & PARTS SET
[32] In Stock
V300Y42
HOSE CLAMP
Notes: SEE D: CONTROL & PARTS SET
