FDTS45KXE6D FAN ASSY AND CABINET

FDTS45KXE6D FAN ASSY AND CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

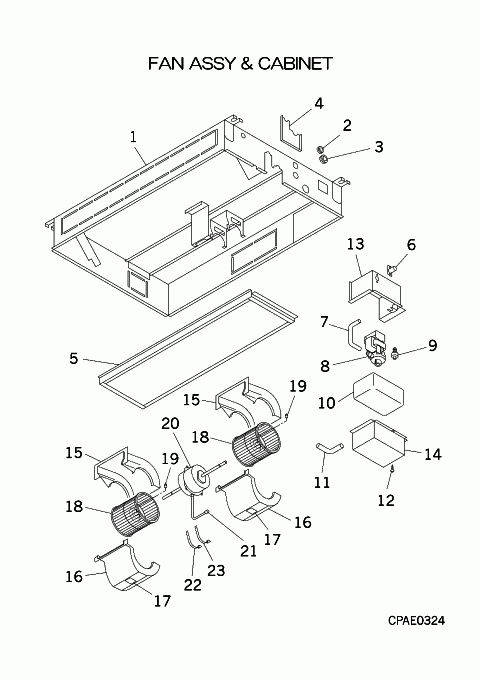

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact
PJC100A006D
CABINET ASSY
Contact
[2] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[3] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[4] Contact
PJC132A006
LID
Contact
[5] Contact
PJC101A001D
FRAME ASSY
Contact
[6] In Stock
SSA422C078A
SOCKET
[6-14] Contact
PJC451A009
PUMP ASSY,DRAIN
Contact
[7] In Stock
SSA423A079
HOSE DRAIN
SSA423A079
[8] In Stock

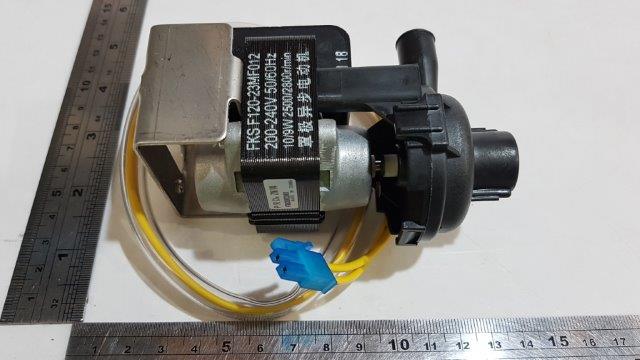

PJA451A510N
PUMP ASSY,DRAIN
PJA451A510N
[9] In Stock
SSA536A017AD
SWITCH,FLOAT
Notes: FS
[10] In Stock
PJC454A004
PAN,DRAIN
PJC454A004
[11] Contact
SSA423A050
HOSE DRAIN
Contact
[12] Contact
SSA913D006
SCREW
Contact
Notes: 4X8, 1pc ONLY
[13] Contact
PJC142A002
BOX PUMP
Contact
Notes: UPPER
[14] Contact
PJC142A003
BOX PUMP
Contact
[15] Contact
PFA433B200
CASING
Contact
[16-17] Contact
PFA433B201C
CASING(L)
Contact
Notes: LOWER
[17] Contact
RSA011H005A
LABEL,NOTIC
Contact
[18-19] In Stock
SSA431D031A
IMPELLER
SSA431D031A
[19] Contact
SSA912F002DF
SCREW,SET(S
Contact
Notes: M6X8, 1pc ONLY
[20-21] Out of Stock
SSA511A305A
MOTOR
[21] Contact
SSA552A143A
CAPACITOR
Contact
Notes: 2MF 400VAC
[22] In Stock
PFA116A207B
BRACKET, MOTOR
Notes: RIGHT, LEFT Show Image
PFA116A207B
[23] In Stock
PFA116A207C
BRACKET, MOTOR
Notes: LEFT Show Image
PFA116A207C
[24] In Stock
SSA423A101
HOSE,DRAIN
SSA423A101
[25] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
