FDTS251HKXE2 CABINET AND FAN ASSY

FDTS251HKXE2 CABINET AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

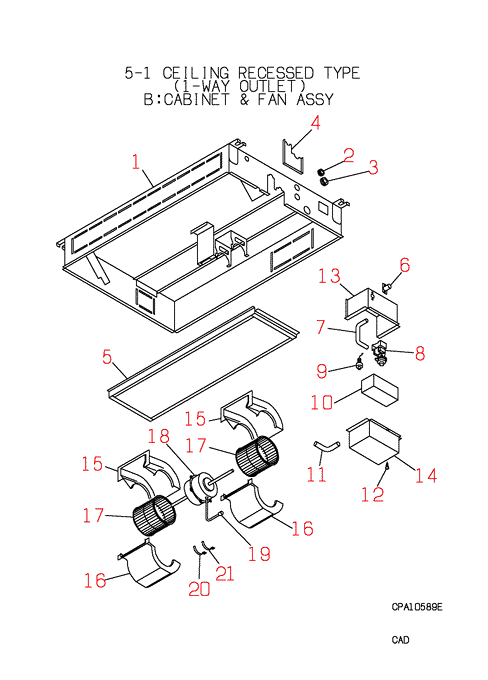

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact
PJC100A001D
CABINET ASY
Contact
[2] In Stock
S751W25X
GROMMET
Show Image
S751W25X
[3] In Stock
S751W30X
GROMMET V14
Show Image
S751W30X
[4] Contact
PJC132A006
LID
Contact
[5] Contact
PJC101A001
FRAME ASSY
Contact
[6] In Stock
SSA422C078A
SOCKET
[6-12] Contact
PJC451A003A
PUMP ASSY,DRAIN
Contact
[7] In Stock
SSA423A079
HOSE DRAIN
Show Image
SSA423A079
[8] Contact
PJA451A308D
PUMP ASSY
Contact
[9] In Stock
SSA536A017C
SWITCH,FLOAT
Notes: FS Show Image
SSA536A017C
[10] In Stock
PJC454A004
PAN,DRAIN
Show Image
PJC454A004
[11] Contact
SSA423A050
HOSE DRAIN
Contact
[12] Contact
SSA913D006
SCREW
Contact
Notes: 1pc ONLY
[13] Contact
PJC142A019A
BOX ASSY,PUMP(U)
Contact
[14] Contact
PJC142A003
BOX PUMP
Contact
[15] Contact
PFA433B200
CASING
Contact
[16] Contact
PFA433B201
CASING
Contact
[17] In Stock
SSA431D031A
IMPELLER
Show Image
SSA431D031A
[18-19] Out of Stock
SSA511A422A
MOTOR
[19] Contact
SSA552A048
CAPACITOR
Contact
Substitute: SSA552A143D
[20] In Stock
PFA116A207B
BRACKET, MOTOR
Notes: LEFT Show Image
PFA116A207B
[21] In Stock
PFA116A207C
BRACKET, MOTOR
Show Image
PFA116A207C
SKU: FDTS251HKXE2 CABINET AND FAN ASSY Category:
