Parts List
Key:
Instock.
Nilstock.
Contact MRE.

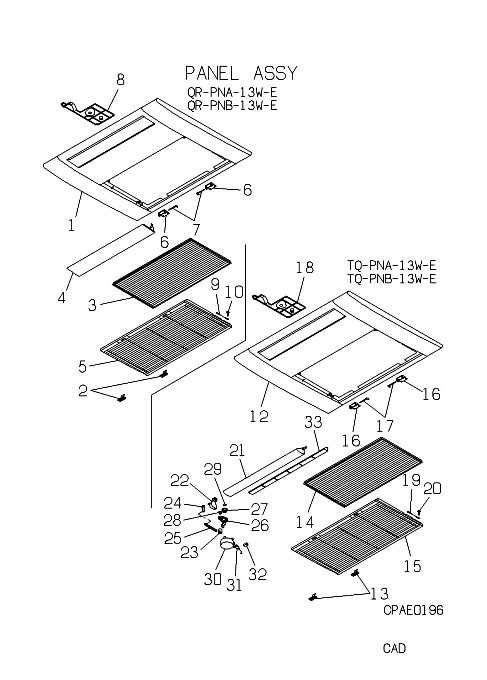

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1]
Contact
PJC122A101A
PANEL,FRONT
Contact
[1-10]
Contact
PJC122A102A
PANEL ASSY,FRONT
Contact
[2]
In Stock
PFA116A201
STOPPER
[3]
In Stock
PJC437A100
FILTER AIR
[4]
Contact
PJC132A102
LID
Contact
[5]
Contact
PJC435A100
GRILLE AIR
Contact
[6]
Contact
PJC129A100
BUSH
Contact
[7]
In Stock
PFA129A207
SHAFT
[8]
Contact
PJC129A102
COVER
Contact
[9]
Contact
SSA937G080F
STRAP
Contact
[10]
In Stock
W011D04X008
TAP SCREW
[11]
Contact
PJC006A100
PARTS SET
Contact
[12]
Contact
PJC122A101
PANEL,FRONT
Contact
[12-33]
Contact
PJC122A100
PANEL ASSY,FRONT
Contact
[13]
In Stock
PFA116A201
STOPPER
[14]
In Stock
PJC437A100
FILTER AIR
[15]
Contact
PJC435A100
GRILLE AIR
Contact
[16]
Contact
PJC129A100
BUSH
Contact
[17]
In Stock
PFA129A207
SHAFT
[18]
Contact
PJC129A102
COVER
Contact
[19]
Contact
SSA937G080F
STRAP
Contact
[20]
In Stock
W011D04X008
TAP SCREW
[21]
In Stock
PJC436A100
LOUVER ASSY
[22]
Contact
PJC129A101
SUPPORT
Contact
[23]
Contact
PJC129A103
SPSCER
Contact
[24]
Contact
PJC144A100
LINK ASSY
Contact
[25]
Contact
PJC144A101
LINK B
Contact
[26]
Contact
PJC144A102
LINK B
Contact
[27]
Contact
PJC144A103
LINK C
Contact
[28]
Contact
PJB935A001
SLEEVE
Contact
[29]
Contact
S500P05
SNAP RING-E
Contact
[30]
In Stock
SSA511J306A
MOTOR LOUVE
[31]
Contact
PJC504A101
HARNES ASSY
Contact
[32]
Contact
PFA523J001T
MICRO SWITC
Contact
[33]
Contact
PJC433B102
STABILIZER
Contact
[34]
Contact
PJC006A100
PARTS SET
Contact
