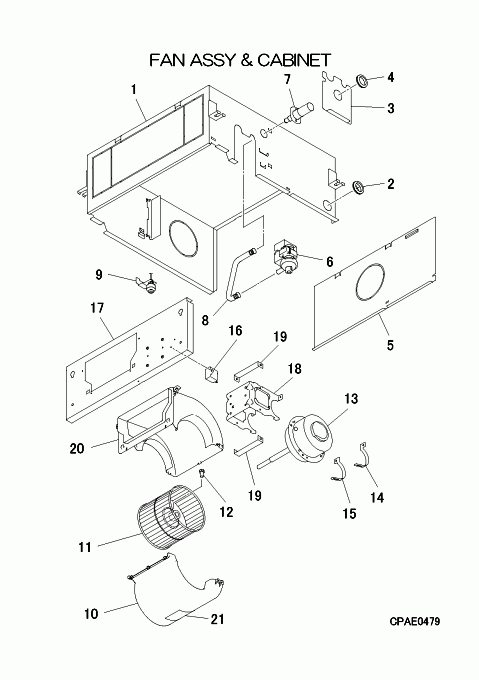

FDTQ36KXZE3-W/1 FAN ASSY AND CABINET

FDTQ36KXZE3-W/1 FAN ASSY AND CABINET

FDTQ36KXZE3-W/1 FAN ASSY AND CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact
PJC100A105
CABINET ASSY
Contact
Notes: !
[2] In Stock
S751W30X
GROMMET V14
Notes: D35, ***SOLD INDIVIDUALLY*** Show Image
S751W30X
[3-4] Contact
PJC132A106
LID ASSY
Contact
[4] In Stock
S751W30
GROMMET
Notes: D35 Show Image
S751W30
[5] Contact
PJC102A003
PANEL ASSY,REAR
Contact
[6] In Stock
PJA451A510V
PUMP ASSY,DRAIN
Notes: DM Show Image
PJA451A510V
[7] In Stock
PSA422C003
SOCKET
[7-8] Contact
PJC422C102A
SOCKET ASSY,DRAIN
Contact
[8] In Stock
SSA423A100
HOSE,DRAIN
[9] In Stock
PJC536A101
SWITCH ASSY,FLOAT
Notes: FS Show Image
PJC536A101
[10] In Stock
PFA433B609
CASING(U)
[11-12] In Stock
SSA431D081A
IMPELLER
Notes: FAN BARREL Show Image
SSA431D081A
[12] Contact
SSA912F002DF
SCREW,SET(S
Contact
Notes: 1pc ONLY
[13] In Stock
SSA511T807
MOTOR,AC
[14] In Stock
PFA116A207H
BRACKET
Notes: RIGHT Show Image
PFA116A207H
[15] In Stock
PFA116A207G
BRACKET
Notes: LEFT Show Image
PFA116A207G
[16] Contact
SSA552A497A
CAPACITOR,RUNNING
Contact
Notes: CFI 1.2MF 450VAC
[17] Contact
PJC116A146
BRACKET ASSY
Contact
[18] Contact
PJC116A144
BRACKET(MOTOR)
Contact
[19] Contact
PJC119A070
PLATE
Contact
[20] In Stock
PFA433B610
CASING(L)
[21] In Stock
PSA011H046
LABEL,NOTICE
[22] In Stock
PSA423A004B
HOSE ASSY,DRAIN
Notes: SEE C: CONTROL & PARTS SET Show Image
PSA423A004B
[23] In Stock
V300Y32
HOSE CLAMP
Notes: SEE C: CONTROL & PARTS SET
