FDTQ28KXZE3-W/1 CONTROL AND PARTS SET

FDTQ28KXZE3-W/1 CONTROL AND PARTS SET

FDTQ28KXZE3-W/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

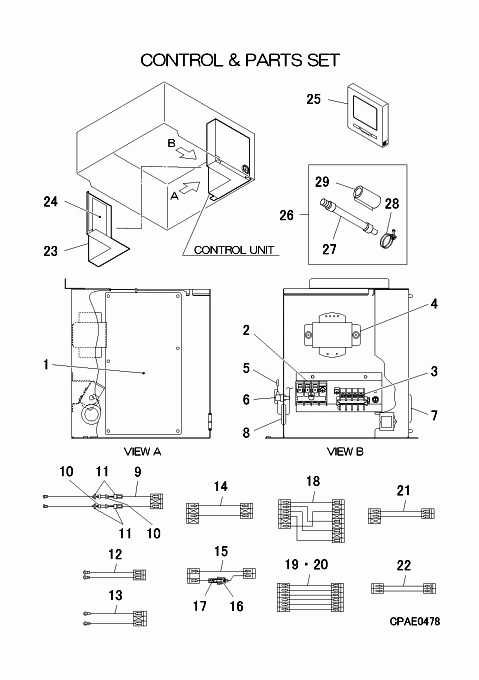

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJA505A299JL
PWB ASSY
Contact
Notes: ONLY FOR SUPPLY PARTS
[1-22] Contact
PJC501A204HB
CONTROL UNIT
Contact
Notes: !
[2] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[3] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[4] In Stock
SSA554A487
TRANSFORMER
Notes: TR Show Image
SSA554A487
[5] In Stock
PSA551A008D
SENSOR ASSY
Notes: THI-A Show Image
PSA551A008D
[6] Contact
SSA937D079
BAND
Contact
Notes: FOR THI-A
[7] In Stock
S751W30X
GROMMET V14
Notes: D35, ***SOLD INDIVIDUALLY*** Show Image
S751W30X
[8] Contact
S751W20X
GROMMET
Contact
Notes: D25
[9-11] Contact
PJB504A234S
WIRING(TB,POWER)
Contact
Notes: TB1 L,TB1 N- CNW0 PWB
[10] In Stock
SSA564A116G
FUSE(CURRENT)
Notes: F 3.15A, 3.15 AMP FUSE Show Image
SSA564A116G
[11] In Stock
RWC564B002
HOLDER,FUSE
Show Image
RWC564B002
[12] Contact
PJB504A235L
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[13] Contact
PJB504A228M
WIRING(TB,XY)
Contact
Notes: TB2 X,TB2 Y- CNB PWB
[14] In Stock
PJB504A229B
WIRING(LM)
Notes: CNJ- CNJ2 PWB
[15-17] In Stock
PJB504A238N
WIRING(DM)
Notes: CNR PWB- CNR2 DM, Has 0.16A fuse Show Image
PJB504A238N
[16] In Stock
SSA564A139
FUSE(CURRENT)
Notes: F 0.16A Show Image
SSA564A139
[17] In Stock
RWC564B002
HOLDER,FUSE
Show Image
RWC564B002
[18] In Stock
PJC504A048
WIRING(FM)
Notes: CNF1 FMI1- CNM3 PWB Show Image
PJC504A048
[19] In Stock
PJB504A236R
WIRING(EEV)
Notes: CNA2 EEV- CAN PWB, CNA2 EEV- CNA PWB Show Image
PJB504A236R
[20] In Stock
PJC504A047
WIRING(THI-R)
Notes: CNN2- CNN PWB Show Image
PJC504A047
[21] In Stock
PJB504A237
WIRING(LS)
Notes: CNS2- CNS PWB
[22] In Stock
PJB504A233
WIRING(FS)
Notes: CNI2- CNI PWB
[23-24] Contact
PJC142A142D
LID ASSY,CONTROL B
Contact
[24] Contact
PJC011G036
LABEL,WIRING
Contact
Notes: !
[25] Contact
PJZ502A031AH
CONTROL ASSY,REMOT
Contact
Notes: !RC-EX3D
[26-29] Contact
PJF008A001CB
PARTS SET
Contact
[27] In Stock
PSA423A004B
HOSE ASSY,DRAIN
Show Image
PSA423A004B
[28] In Stock
V300Y32
HOSE CLAMP
[29] In Stock
SSA153B016BA
INSULATION,PIPE
Show Image
SSA153B016BA
[30] Contact
PJC011F222B
LABEL,MODEL NAME
Contact
Notes: !
