FDTQ28KXE6F/1 FAN ASSY AND CABINET

Name: FDTQ28KXE6F/1 FAN ASSY AND CABINET
SKU: FDTQ28KXE6F/1 FAN ASSY AND CABINET
Availability: InStock

FDTQ28KXE6F/1 FAN ASSY AND CABINET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

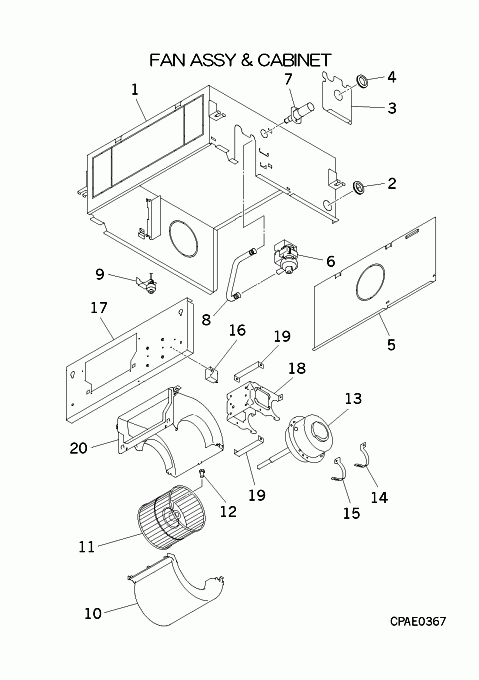

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact

PJC100A105

CABINET ASSY

Contact

[2] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[3-4] Contact

PJC132A106

LID ASSY

Contact

[4] In Stock

S751W30

GROMMET

Notes: D35 Show Image

[5] Contact

PJC102A003

PANEL ASSY,REAR

Contact

[6] In Stock

PJA451A510V

PUMP ASSY,DRAIN

Notes: DM Show Image

[7] In Stock

SSA422C088

SOCKET

Notes: LENGTH 11.5CM Show Image

[7-8] Contact

PJC422C102

SOCKET ASSY,DRAIN

Contact

[8] In Stock

SSA423A100

HOSE,DRAIN

[9] In Stock

PJC536A101

SWITCH ASSY,FLOAT

Notes: FS Show Image

[10] In Stock

PSA099A616

CASING ASSY

Notes: INCLUDED NO.20, UPPER & LOWER

[11-12] In Stock

SSA431D081A

IMPELLER

Notes: FAN BARREL Show Image

[12] Contact

SSA912F002DF

SCREW,SET(S

Contact

Notes: 1pc ONLY

[13] In Stock

SSA511T807

MOTOR,AC

[14] In Stock

PFA116A207H

BRACKET

Notes: RIGHT Show Image

[15] In Stock

PJG116A063

BRACKET(MOTOR)

Notes: LEFT Show Image

[16] Contact

SSA552A866A

CAPACITOR,RUNNING

Contact

Substitute: SSA552A497A Notes: CFI 1.2MF 450VAC

[17] Contact

PJC116A146

BRACKET ASSY

Contact

[18] Contact

PJC116A144

BRACKET(MOTOR)

Contact

[19] Contact

PJC119A070

PLATE

Contact

[20] In Stock

PSA099A616

CASING ASSY

Notes: INCLUDED NO.20, UPPER & LOWER

[21] In Stock

SSA423A101

HOSE,DRAIN

Substitute: SSA423A101A Notes: ACCESSORIES SEE SECTION Show Image

[22] In Stock

V300Y38

CLAMP

Notes: ACCESSORIES SEE SECTION, CLAMP Show Image
