FDTQ28KXE6D CONTROL AND PARTS SET

Name: FDTQ28KXE6D CONTROL AND PARTS SET
SKU: FDTQ28KXE6D CONTROL AND PARTS SET
Availability: InStock

FDTQ28KXE6D CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

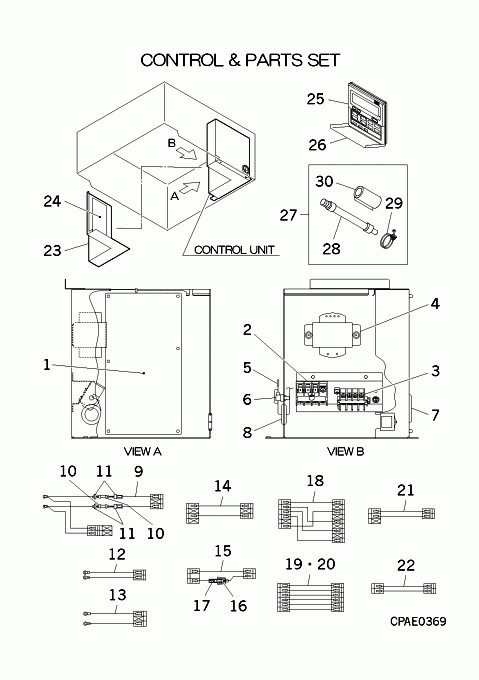

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A193YJ

PWB ASSY

Show Image

[1-22] Contact

PJC501A128BB

CONTROL UNIT

Contact

[2] In Stock

SSA561B702C

BLOCK,TERMINAL

Substitute: SSA561B702A Notes: TB1

[3] In Stock

SSA561B720A

BLOCK,TERMINAL

Substitute: SSA561B725 Notes: TB2 Show Image

[4] In Stock

SSA554A487

TRANSFORMER

Notes: TR Show Image

[5] In Stock

PSA551A008D

SENSOR ASSY

Notes: THI-A Show Image

[6] Contact

SSA937D079

BAND

Contact

Notes: FOR THI-A

[7] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[8] Contact

S751W20X

GROMMET

Contact

Notes: D25

[9-11] In Stock

PJB504A234P

WIRING(TB,POWER)

Notes: TB1 L,TB1 N- CNW0 PWB,CNU

[10] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[11] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[12] In Stock

PJB504A235G

WIRING(TB,AB)

Notes: TB2 A,TB2 B- CNK1 PWB

[13] Contact

PJB504A228G

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB

[14] In Stock

PJB504A229B

WIRING(LM)

Notes: CNJ- CNJ2 PWB

[15-17] In Stock

PJB504A238N

WIRING(DM)

Notes: CNR PWB- CNR2 DM

[16] In Stock

SSA564A139

FUSE(CURRENT)

Notes: 0.16A, F 0.16A Show Image

[17] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[18] In Stock

PJC504A048

WIRING(FM)

Notes: CNF1 FMI1- CNM3 PWB

[19] In Stock

PJB504A236R

WIRING(EEV)

Notes: CNA2 EEV- CNA PWB

[20] In Stock

PJC504A047

WIRING(THI-R)

Notes: CNN2- CNN PWB

[21] In Stock

PJB504A237

WIRING(LS)

Notes: CNS2- CNS PWB

[22] In Stock

PJB504A233

WIRING(FS)

Notes: CNI2- CNI PWB

[23-24] Contact

PJC142A142A

LID ASSY,CONTROL B

Contact

[24] Contact

PJC011G022

LABEL,WIRING

Contact

[25-26] Contact

PJA502A800BC

CONTROL ASSY,REMOTE

Contact

Substitute: RC-E5 Notes: RC-E4, "RC-E5" SALES ITEM, REPLACES RC-E3 AND RC-E4

[26] Contact

PJA129A708

COVER Z

Contact

[27-30] Contact

PJC008A115A

PARTS SET

Contact

[28] In Stock

SSA423A101

HOSE,DRAIN

Substitute: SSA423A101A Show Image

[29] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[30] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[31] Contact

PJC011F041B

LABEL,MODEL NAME

Contact
