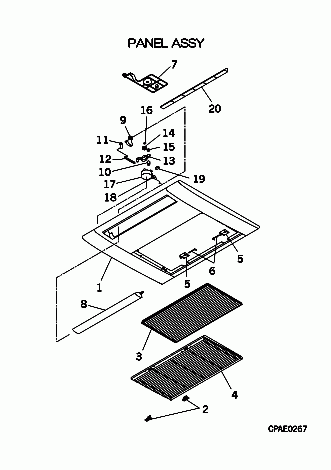

FDTQ28KXE6 PANEL ASSY

FDTQ28KXE6 PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJC122A101C
PANEL,FRONT
Contact
Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION
[1-20] Contact
PJC122A100J
PANEL ASSY,FRONT
Contact
Notes: !TQ-PSA-15W-E
[2] Contact
PFA116A201B
STOPPER
Contact
[3] In Stock
PJC437A100
FILTER AIR
Notes: W536XD281(T12) Show Image
PJC437A100
[4] In Stock
PJC435A100B
GRILLE,AIR INLET
[5] Contact
PJC129A100
BUSH
Contact
[6] In Stock
PFA129A207
SHAFT
[7] Contact
PJC129A102
COVER
Contact
[8] In Stock
PJC436A100
LOUVER ASSY
[9] Contact
PJC129A101
SUPPORT
Contact
[10] Contact
PJC129A103
SPSCER
Contact
[11] Contact
PJC144A100
LINK ASSY
Contact
[12] Contact
PJC144A101
LINK B
Contact
[13] Contact
PJC144A102
LINK B
Contact
[14] Contact
PJC144A103
LINK C
Contact
[15] Contact
PJB935A001
SLEEVE
Contact
[16] Contact
S500P05
SNAP RING-E
Contact
[17] In Stock
SSA511J306A
MOTOR LOUVE
Show Image
SSA511J306A
[18] Contact
PJC504A101A
HARNESS ASSY
Contact
Notes: LM,LM-CNJ, LM,LM- CNJ
[19] Contact
PFA523J001Z
SWITCH ASSY(MICRO)
Contact
[20] Contact
PJC433B102
STABILIZER
Contact
