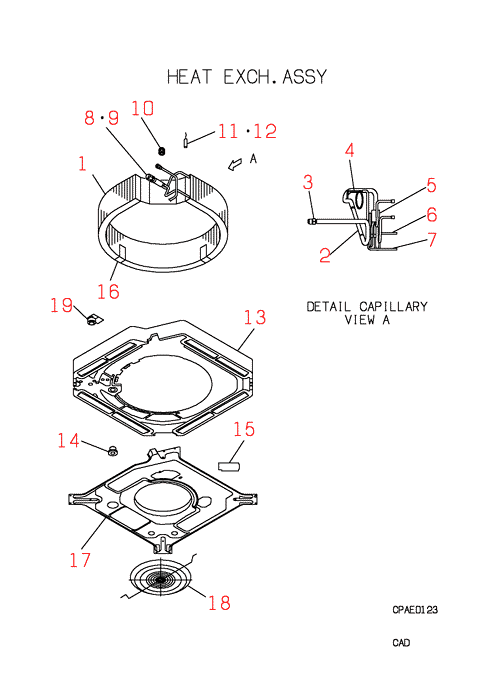

FDTN508C HEAT EXCH. ASSY

FDTN508C HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJA311A503
HEAT,EX,AIR
Contact
[1-12] Contact
PJA301A502Z
HEAT,EX,AIR
Contact
[2] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[2-7] Contact
PJA315A503
DSTIBUTOR
Contact
[3] Contact
SSA323F075A
UNION
Contact
[4] Contact
PJA315B724A
CAPILLARY A
Contact
Notes: !D2.8XD4.0 L200
[5] Contact
SSA315A279
DISTRIBUTOR
Contact
[6] Contact
PJA315B783
CAPILLARY
Contact
Notes: !D3.5XD5.0 L300
[7] Contact
PJA315B784
CAPILLARY
Contact
Notes: !D3.0XD4.0 L300
[8-9] Contact
PJA315D503A
HEADER ASY
Contact
[9] Contact
SSA323F075D
UNION
Contact
[10] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[11] In Stock
PJA551A005W
SENSOR
Notes: THI-R Show Image
PJA551A005W
[12] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[13-14] Out of Stock
PJA454A500B
PAN DRAIN
Substitute: OUT OF PRODUCTION
[14] Contact
SSA326A022
PLUG
Contact
[15] Contact
PJA142A504A
COVER
Contact
[16] Contact
PJA116A500A
BRACKET
Contact
[17] Contact
PJA433A501
BELLMOUTH
Contact
[18] Contact
PJA131A003
GUARD,FAN
Contact
[19] In Stock
PJA536A500
SWITCH FLOAT
Notes: FS Show Image
PJA536A500
SKU: FDTN508C HEAT EXCH. ASSY Category:
