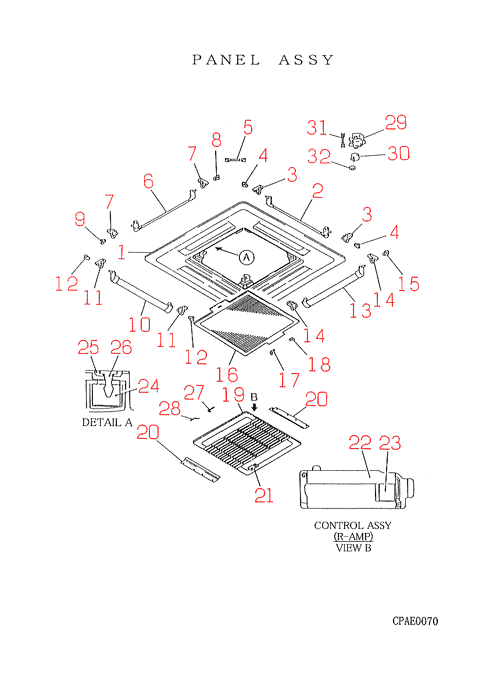

FDTN506HES2 PANEL ASSY

FDTN506HES2 PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJA122A311
PANEL,FRONT
Contact
[1-32] Contact
PJA122A334G
TN-PSC-31W-HE
Contact
Notes: !INCL.REMOCON
[2-4] Contact
PJA436A309
LOUVWR ASY
Contact
[3] Contact
PJA129A369
COLLER
Contact
[4] Contact
PJA144A302
JOINT
Contact
[5] Contact
PJA144A303
LINK ASSY
Contact
[6-8] Contact
PJA436A309A
LOUVER ASSY
Contact
[7] Contact
PJA129A369
COLLER
Contact
[8] Contact
PJA144A302
JOINT
Contact
[9] Contact
PJA144A302A
JOINT
Contact
[10-12] Contact
PJA436A309C
LOUVER ASSY
Contact
[11] Contact
PJA129A369
COLLER
Contact
[12] Contact
PJA144A302A
JOINT
Contact
[13-15] Contact
PJA436A309B
LOUVER ASSY
Contact
[14] Contact
PJA129A369
COLLER
Contact
[15] Contact
PJA144A302
JOINT
Contact
[16] Contact
PJA437A307
FILTER
Contact
Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION
[17] Contact
PJA944C301
HINGE
Contact
[18] Contact
PJA944C301A
HINGE
Contact
[19-24] In Stock
PJA435A307L
GRILLE AIR
[20] Contact
PJA116A379
GUIDE FILTE
Contact
[21] Contact
PJA129A310C
PANEL,ORNAM
Contact
[21-23] Out of Stock
PJA503A004A
CONTROL ASSY
Substitute: OUT OF PRODUCTION Notes: HAS BOTH BOARDS
[22] Contact
PJA129A311
LID
Contact
[23] In Stock
RKH501A510A
AMP ASSY
Notes: RECIEVER AMP ONLY Show Image
RKH501A510A
[24] In Stock
PJA941F301
SPRING LEAF
[25] In Stock
SSA944D062
SUPPORT
Show Image
SSA944D062
[26] In Stock
SSA944D063
STRIKE
Show Image
SSA944D063
[27] Contact
PJA119A200
LEVER
Contact
[28] Contact
PJA119A200A
LEVER
Contact
[29] Contact
PJA129A302
COVER
Contact
[29-32] Contact
PJA144A301L
CAM ASSY
Contact
[30] Out of Stock
SSA511T006A
MOTOR,FAN
[31] Contact
PJA144A303
LINK ASSY
Contact
[32] Contact
PJA144A310
CAM
Contact
SKU: FDTN506HES2 PANEL ASSY Category:
