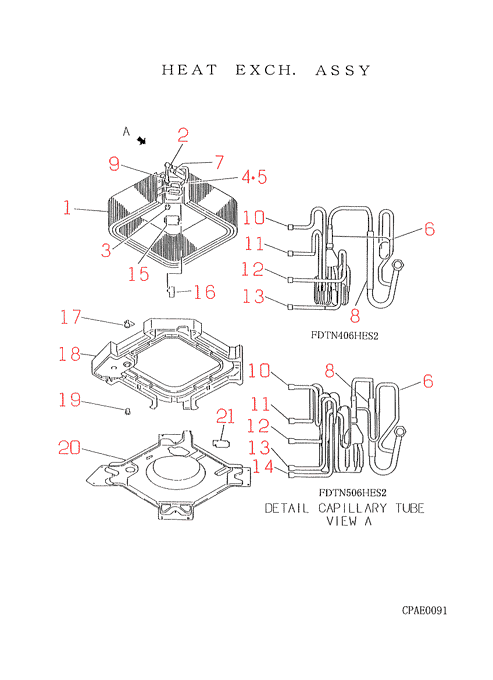

FDTN506HES2 HEAT EXCH. ASSY

FDTN506HES2 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-14] Contact
PJA311A325AA
HEAT EXCH ASSY(AIR
Contact
[2] Contact
SSA323F075D
UNION
Contact
[3] In Stock
S751W25X
GROMMET
Show Image
S751W25X
[4] In Stock
PJA551A005
SENSOR
Notes: THI-R Show Image
PJA551A005
[5] In Stock
RKJ941F001
SPRING LEAF
Show Image
RKJ941F001
[6] Contact
PJA315B616
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D2.6XD4.0 L150
[6-14] Contact
PJA315A331A
DISTRIBUT A
Contact
[7] Contact
SSA323F075A
UNION
Contact
[8] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[9-14] Contact
PJA315A332A
DISTRIBUTOR ASSY
Contact
Notes: INCL.INNER STRAINER
[10] Contact
PJA315B606
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D2.6XD4.0 L400
[11] Contact
PJA315B607
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D2.4XD4.0 L400
[12] Contact
PJA315B608
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D3.5XD5.0 L100
[13] Contact
PJA315B609
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D2.0XD4.0 L200
[14] Contact
PJA315B610
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D1.8XD3.2 L500
[15] Contact
PJA129A319
COVER
Contact
[16] Out of Stock
SSA552A862H
CAPACITOR
Substitute: OUT OF PRODUCTION Notes: CFI, CFO1,2
[17] In Stock
PJA536A302
SWITCH FLOAT
Notes: FS, LENGTH 47.3CM Show Image
PJA536A302
[18-19] In Stock
PJA454A300
PAN DRAIN
[19] Contact
SSA326A022
PLUG
Contact
[20] Contact
PJA433A300
BELLMOUTH
Contact
[21] Contact
PJA142A303
COVER
Contact
