Parts List
Key:
Instock.
Nilstock.
Contact MRE.

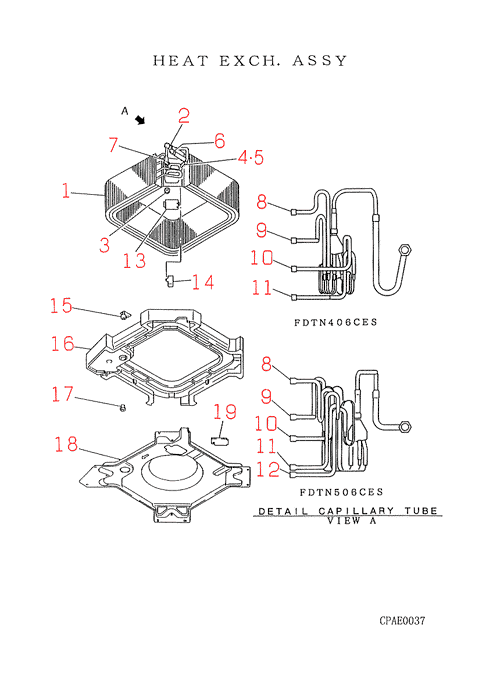

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1-12]
Contact
PJA311A325F
HEAT EXCHANGER,AIR
Contact
[2]
Contact
SSA323F012D
UNION
Contact
[3]
In Stock
S751W25X
GROMMET
[4]
In Stock
PJA551A005
SENSOR
[5]
In Stock
PSA941F001
SPRING LEAF
[6]
Contact
SSA323F075A
UNION
Contact
[7-12]
Contact
PJA315A332A
DISTRIBUTOR ASSY
Contact
Notes: INCL.INNER STRAINER
[8]
Contact
PJA315B606
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D2.6XD4.0 L400
[9]
Contact
PJA315B607
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D2.4XD4.0 L400
[10]
Contact
PJA315B608
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D3.5XD5.0 L100
[11]
Contact
PJA315B609
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D2.0XD4.0 L200
[12]
Contact
PJA315B610
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D1.8XD3.2 L500
[13]
Contact
PJA129A319
COVER
Contact
[14]
In Stock
SSA552A774
CAPACITOR
[15]
In Stock
PJA536A302
SWITCH FLOAT
[16-17]
In Stock
PJA454A300
PAN DRAIN
[17]
Contact
SSA326A022
PLUG
Contact
[18]
Contact
PJA433A300
BELLMOUTH
Contact
[19]
Contact
PJA142A303
COVER
Contact
