Parts List
Key:
Instock.
Nilstock.
Contact MRE.

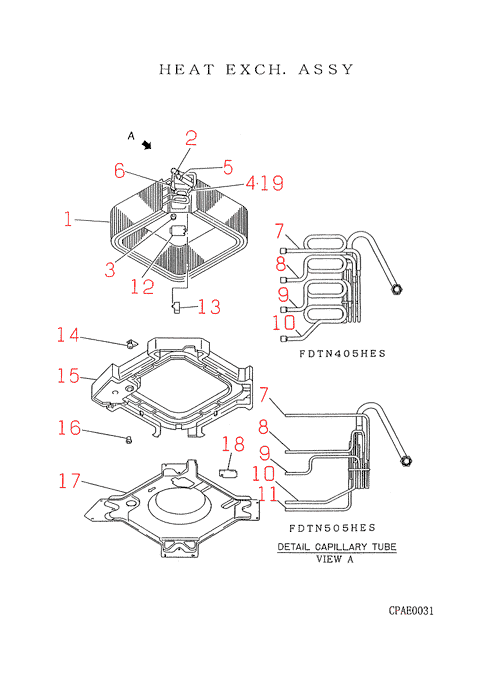

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1-12]
Contact
PJA311A312A
HEAT EXCH
Contact
[2]
Contact
SSA323F012D
UNION
Contact
[3]
In Stock
S751W25X
GROMMET
[4]
In Stock
PJA551A005
SENSOR
[5-11]
Contact
PJA315A312A
DISTRIBUTOR
Contact
Notes: INCL.INNER STRAINER
[6]
Contact
SSA323F012A
UNION
Contact
[7]
Contact
PJA315B419
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D1.4XD2.5 L300
[8]
Contact
PJA315B420
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D1.3XD2.5 L250
[9]
Contact
PJA315B421
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D1.4XD2.5 L240
[10]
Contact
PJA315B422
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D1.2XD2.5 L250
[11]
Contact
PJA315B423
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D1.2XD2.5 L550
[12]
Contact
PJA129A319
COVER
Contact
[13]
In Stock
SSA552A774
CAPACITOR
[14]
In Stock
PJA536A302
SWITCH FLOAT
[15-16]
In Stock
PJA454A300
PAN DRAIN
[16]
Contact
SSA326A022
PLUG
Contact
[17]
Contact
PJA433A300
BELLMOUTH
Contact
[18]
Contact
PJA142A303
COVER
Contact
[19]
In Stock
PSA941F001
SPRING LEAF
