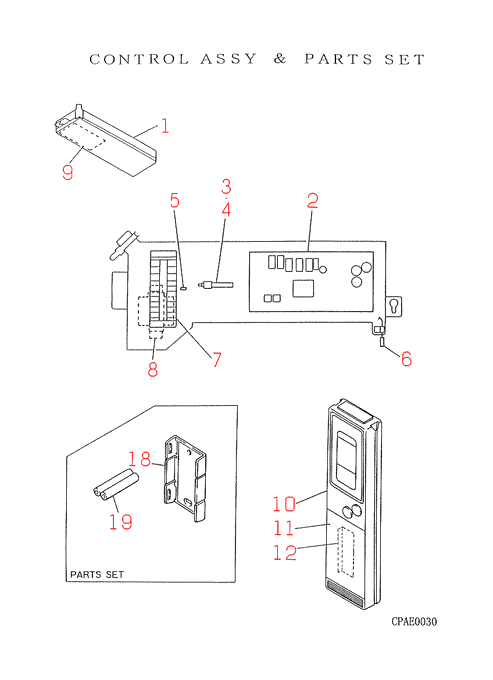

FDTN505HES CONTROL AND PARTS SET

FDTN505HES CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] Contact
PJA501A300V
CONTROL ASSY
Contact
Notes: !
[2] In Stock

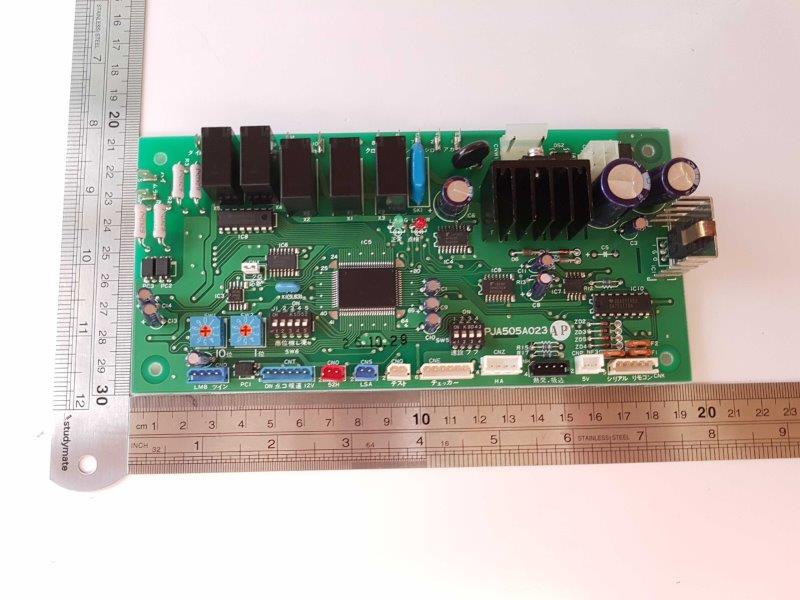

PJA505A023AP
PWB ASSY
[3] In Stock
E200Y05C
FUSE AS85
Show Image
E200Y05C
[4] In Stock
SSA564B004
HOLDER,FUSE
Show Image
SSA564B004
[5] Contact
PJA553A001B
RESISTOR
Contact
Substitute: PJA553A001 Notes: R
[6] In Stock
PJA551A010
SENSOR ASSY
Notes: THI-A Show Image
PJA551A010
[7] Contact
SSA561B210
BLOCK,TERMINAL
Contact
Substitute: SSA561B212DG
[8] In Stock
SSA554A274C
TRANSFORMER
Notes: TRI Show Image
SSA554A274C
[9] Contact
PSB011G792
LABEL,WIRING
Contact
[10-12] Out of Stock
PFA502A201F
REMOCON
Substitute: PFA502A204F
[11] Contact
RKH142A021V
COVER,REMOCON
Contact
[12] Contact
RKH142A006F
COVER,BATTERY
Contact
[16] Contact
PJA008A300J
PARTS SET
Contact
Notes: !INCL.CLAMP,HOSE INSULATION SET
[17-19] Contact
PFA006A203
PARTS SET(REMOCON)
Contact
Notes: !
[18] Contact
RKH032A001
HOLDER
Contact
[19] Contact
RKH549A500
BATTERY
Contact
[20] Contact
PSA012B152
MANUAL,INSTRUCTION
Contact
Notes: !
[21] Contact
PJA032A303A
BOARD
Contact
Notes: !PATTERN SHEET
SKU: FDTN505HES CONTROL AND PARTS SET Category:
