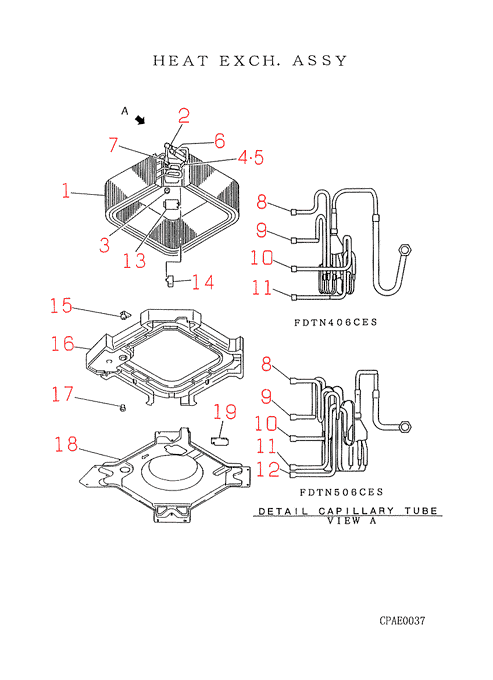

FDTN406CES HEAT EXCH. ASSY

FDTN406CES HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-11] Contact
PJA311A320D
HEAT EXCHANGER,AIR
Contact
[2] Contact
SSA323F012D
UNION
Contact
[3] In Stock
S751W25X
GROMMET
Show Image
S751W25X
[4] In Stock
PJA551A005
SENSOR
Notes: THI-R Show Image
PJA551A005
[5] In Stock
RKJ941F001
SPRING LEAF
Show Image
RKJ941F001
[6] Contact
SSA323F075A
UNION
Contact
[7-11] Contact
PJA315A326
DISTRIBUTOR
Contact
Notes: INCL.INNER STRAINER
[8] Contact
PJA315B555
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D3.0XD5.0 L200
[9] Contact
PJA315B556
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D2.8XD4.0 L500
[10] Contact
PJA315B557
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D3.5XD5.0 L200
[11] Contact
PJA315B558
CAPILLARY ASSY
Contact
Notes: INCL.TUBE D3.0XD5.0 L300
[13] Contact
PJA129A319
COVER
Contact
[14] Out of Stock
SSA552A862H
CAPACITOR
Substitute: OUT OF PRODUCTION Notes: CFI, CFO1,2
[15] In Stock
PJA536A302
SWITCH FLOAT
Notes: FS, LENGTH 47.3CM Show Image
PJA536A302
[16-17] In Stock
PJA454A300
PAN DRAIN
[17] Contact
SSA326A022
PLUG
Contact
[18] Contact
PJA433A300
BELLMOUTH
Contact
[19] Contact
PJA142A303
COVER
Contact
