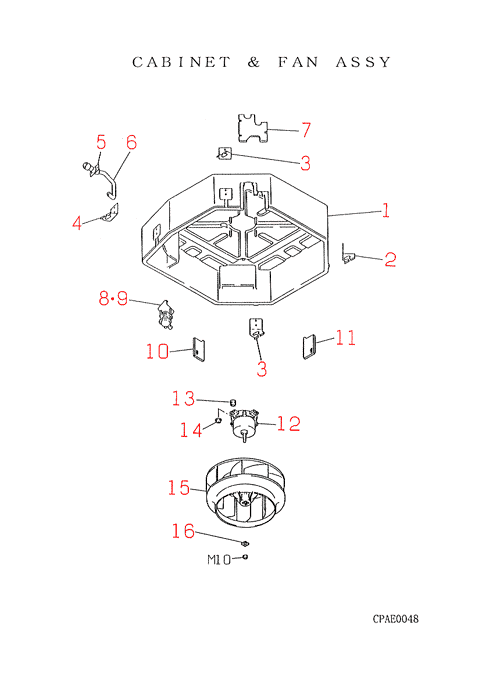

FDTN306HEN CABINET AND FAN ASSY

FDTN306HEN CABINET AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-6] Contact
PJA100A301K
CABINET ASSY
Contact
[2] Contact
PJA032A301A
HOLDER
Contact
[3] Contact
PJA032A301
HOLDER
Contact
[4] Contact
PJA032A300
HOLDER
Contact
[5] In Stock
SSA422C079
SOCKET
Show Image
SSA422C079
[6] Contact
SSA423A061
HOSE DRAIN
Contact
[7] Contact
PJA132A301
LID
Contact
[8-9] In Stock
PJA451A305B
DRAIN,PUMP
Show Image
PJA451A305B
[9] Contact
SSA941C183A
CUSHION RUB
Contact
[10] Contact
PJA141A303
PLATE BAFFL
Contact
[11] Contact
PJA141A305
PLATE,BAFFLE
Contact
[12] Out of Stock
SSA511A477B
MOTOR
Substitute: OUT OF PRODUCTION
[13] Contact
SSA941C174
CUSHION RUB
Contact
[14] In Stock
SSA914C015A
NUT FLANGE
Notes: 1pc Show Image
SSA914C015A
[15] In Stock
SSA431J004
FAN TURBO
[16] Contact
PJA116A123
STOPPER
Contact
Substitute: OUT OF PRODUCTION
SKU: FDTN306HEN CABINET AND FAN ASSY Category:
