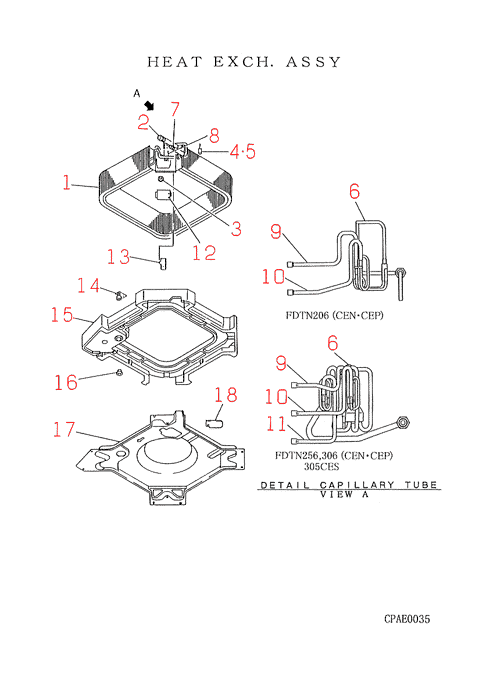

FDTN306CEN HEAT EXCH. ASSY

FDTN306CEN HEAT EXCH. ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-11] PJA311A324J HEAT EXCHANGER,AIR Contact   Contact
  • [2] SSA323F012C UNION,SOLDER Contact   Contact
  • [3] S751W25X GROMMET In Stock Show Image
  • [4] PJA551A005 SENSOR In Stock Notes: THI-R, THI-R Show Image
  • [5] RKJ941F001 SPRING LEAF In Stock Substitute: PSA941F001 Show Image
  • [6] PJA315B605 CAPILLARY Contact Notes: D3.5XD5.0 L80   Contact
  • [7] SSA323F075A UNION Contact   Contact
  • [8-11] PJA315A330B DISTRIBUTOR ASSY Contact Notes: INCL.INNER STRAINER   Contact
  • [9] PJA315B585B CAPILLARY ASSY Contact Notes: INCL.TUBE D3.0XD5.0 L300   Contact
  • [10] PJA315B586B CAPILLARY ASSY Contact Notes: INCL.TUBE D2.8XD4.0 L200   Contact
  • [11] PJA315B587 CAPILLARY ASSY Contact Notes: INCL.TUBE D2.4XD4.0 L300   Contact
  • [12] PJA129A319 COVER Contact   Contact
  • [13] SSA552A862F CAPACITOR In Stock Notes: CFO. 4MF (4 MICRO FARADS), CFI Show Image
  • [14] PJA536A302 SWITCH FLOAT In Stock Notes: FS
  • [15-16] PJA454A300 PAN DRAIN In Stock
  • [16] SSA326A022 PLUG Contact   Contact
  • [17] PJA433A300 BELLMOUTH Contact   Contact
  • [18] PJA142A303 COVER Contact   Contact
SKU: FDTN306CEN HEAT EXCH. ASSY Category:
