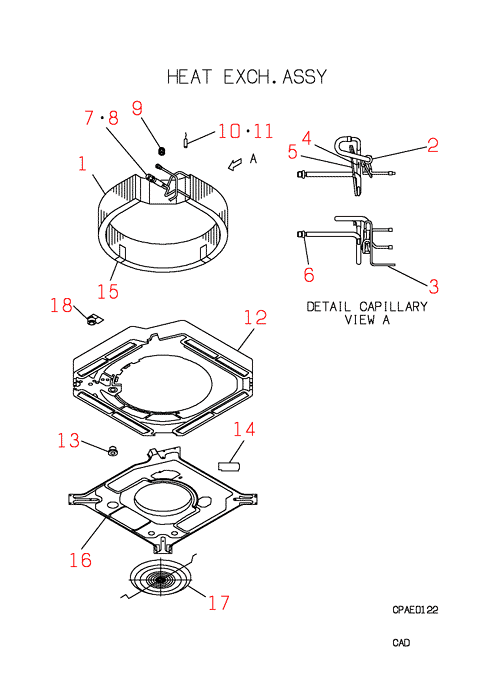

FDTN258H HEAT EXCH. ASSY

FDTN258H HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJA311A502A
HEAT,EX,AIR
Contact
[1-11] Contact
PJA301A500AL
HEAT,EX,AIR
Contact
[2] Contact
SSA315A255B
DISTRIBUTOR
Contact
[2-3] Contact
PJA315A504F
DISTRIBUTOR
Contact
[2-6] Contact
PJA315A501D
DSTRIBUTOR
Contact
[3] Contact
P210V35X250
CAPILLARY
Contact
Notes: !D3.5XD5.0 L250
[4] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[4-6] Contact
PJA304A500C
PIPING ASY
Contact
[5] Contact
PJA315B716C
CAPILLARY A
Contact
Notes: !D2.0XD3.2 L300
[6] Contact
SSA323F075A
UNION
Contact
[7] Contact
PJA315D504A
HEADER ASSY
Contact
[7-8] Contact
PJA315D501B
DSTRIBUTOR
Contact
[8] Contact
SSA323F075C
UNION
Contact
[9] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[10] In Stock
PJA551A005W
SENSOR
Notes: THI-R Show Image
PJA551A005W
[11] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[12-13] Out of Stock
PJA454A500B
PAN DRAIN
Substitute: OUT OF PRODUCTION
[13] Contact
SSA326A022
PLUG
Contact
[14] Contact
PJA142A504A
COVER
Contact
[15] Contact
PJA116A304
BRACKET
Contact
[16] Contact
PJA433A501
BELLMOUTH
Contact
[17] Contact
PJA131A003
GUARD,FAN
Contact
[18] In Stock
PJA536A500
SWITCH FLOAT
Notes: FS Show Image
PJA536A500
