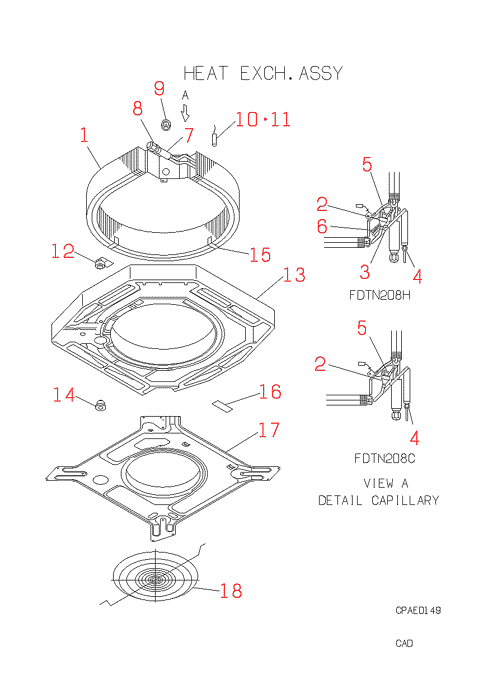

FDTN208H HEAT EXCH. ASSY

FDTN208H HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJA311A505C
HEAT,EX,AIR
Contact
[1-11] Contact
PJA301A507AL
HEAT EXCH
Contact
[2] Contact
SSA315A255C
DISTRIBUTOR
Contact
[2-6] Contact
PJA315A513B
DISTRIBUTOR
Contact
[3] In Stock
SSA385A029
VALVE
Notes: VALVE Show Image
SSA385A029
[4] Contact
SSA323F075
UNION
Contact
Notes: LIQ.
[5] Contact
PJA315B772
CAPILLARY
Contact
[6] Contact
PJA315B773B
CAPILLARY ASSY
Contact
Notes: !D1.4XD2.5 L400
[7-8] Contact
PJA315D519B
HEADER ASSY
Contact
[8] Contact
SSA323F075C
UNION
Contact
[9] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[10] In Stock
PJA551A005AA
SENSOR
Notes: THI-R Show Image
PJA551A005AA
[11] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[12] In Stock
PJA536A501
SWITCH FLOAT
Notes: FS Show Image
PJA536A501
[13-14] In Stock
PJA454A502
PAN ASY,DRA
[14] Contact
SSA326A022
PLUG
Contact
[15] Contact
PJA116A508
BRACKET
Contact
[16] Contact
PJA142A504A
COVER
Contact
[17] Contact
PJA433A504
BELLMOUTH
Contact
Substitute: PJA433A504A
[18] Contact
PJA131A004
GUARD,FAN
Contact
