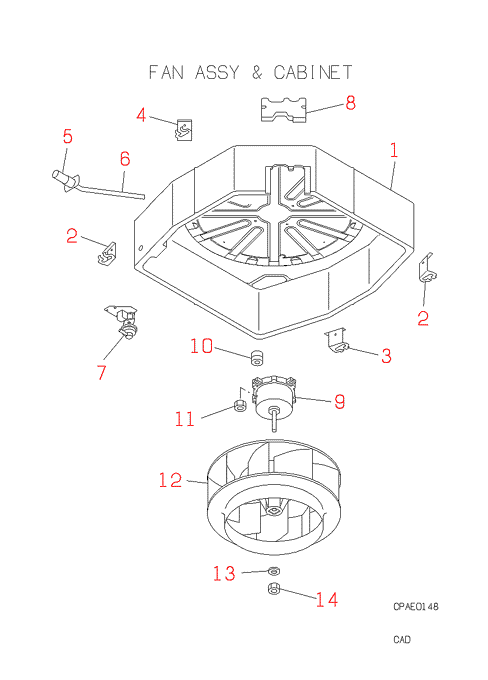

FDTN208C FAN ASSY AND CABINET

FDTN208C FAN ASSY AND CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Contact
PJA100A501
CABINET ASS
Contact
[2] Contact
PJA032A505
HOLDER
Contact
[3] Contact
PJA032A505A
HOLDER
Contact
[4] Contact
PJA032A506
HOLDER
Contact
[5] In Stock
SSA422C079
SOCKET
Show Image
SSA422C079
[5-6] Contact
PJA422C501
SOCKET ASSY
Contact
[6] In Stock
SSA423A086
HOSE,DRAIN
Show Image
SSA423A086
[7] In Stock
PJA451A510C
PUMP
[8] Contact
PJA132A502
LID
Contact
[9] In Stock
SSA511T094G
MOTOR AC
[10] In Stock
SSA941C296
CUSHION LUB
Show Image
SSA941C296
[11] In Stock
SSA914C015A
NUT FLANGE
Notes: 1pc Show Image
SSA914C015A
[12] In Stock
SSA431J011
FAN,TURBO
[13] In Stock
W205H10
WASHER
Notes: 1pc ONLY Show Image
W205H10
[14] In Stock
N001A10
NUT
Notes: 1pc Show Image
N001A10
[15] In Stock
PSA006A039
HOSE SET, DRAIN
SKU: FDTN208C FAN ASSY AND CABINET Category:
