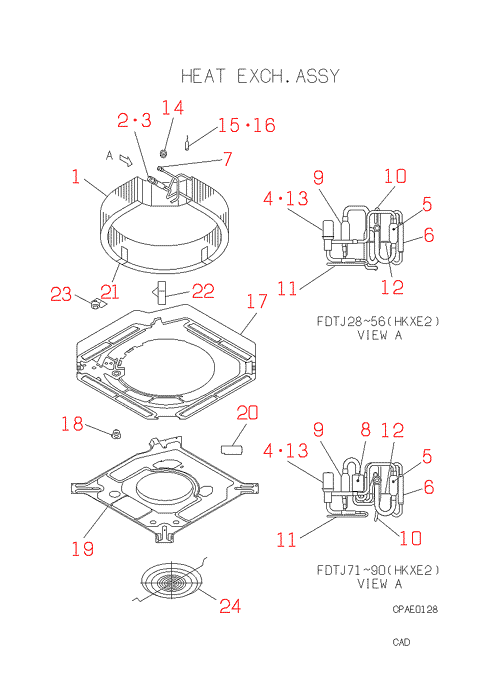

FDTJ90HKXE2 HEAT EXCH. ASSY

FDTJ90HKXE2 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJA311A500
HEAT,EX,AIR
Contact
[1-16] Contact
PJA301A504C
HEAT,EX,AIR
Contact
[3] Contact
SSA323F012C
UNION,SOLDER
Contact
[4] In Stock
SSA387F021A
EXP HKXA
Notes: Expansion Valve Body
[5] Contact
SSA357A008BK
STRAINER
Contact
[5-7] Contact
PJA321A868A
PIPNG ASY
Contact
[6] In Stock
SSA385A029
VALVE
Notes: VALVE Show Image
SSA385A029
[7] Contact
SSA323F012A
UNION
Contact
[8] Contact
SSA315A269A
DISTRIBUTOR
Contact
[8-12] Contact
PJA315A509
DISTRI ASSY
Contact
[9] Contact
SSA357A008BH
STRAINER
Contact
[10] Contact
PJA315B775B
CAPILARY AS
Contact
Notes: !D3.0XD5.0 L350
[11] Contact
P210V35X250
CAPILLARY
Contact
Notes: !D3.5XD5.0 L250
[12] Contact
PJA315B736
CAPILLARY
Contact
Notes: !D1.0XD2.0 L500
[13] In Stock
SSA382F451
COIL SOL300
Notes: SM, Expansion Valve coil Show Image
SSA382F451
[14] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[15] In Stock
PJA551A005W
SENSOR
Notes: THI-R Show Image
PJA551A005W
[16] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[17-18] Out of Stock
PJA454A500B
PAN DRAIN
Substitute: OUT OF PRODUCTION
[18] Contact
SSA326A022
PLUG
Contact
[19] Contact
PJA433A501
BELLMOUTH
Contact
[20] Contact
PJA142A504A
COVER
Contact
[21] Contact
PJA116A304
BRACKET
Contact
[22] In Stock
SSA552A074
CAPACITOR
Notes: CFI Show Image
SSA552A074
[23] In Stock
PJA536A500
SWITCH FLOAT
Notes: FS Show Image
PJA536A500
[24] Contact
PJA131A003
GUARD,FAN
Contact
SKU: FDTJ90HKXE2 HEAT EXCH. ASSY Category:
