FDTCA22KXE4R CONTROL AND PARTS SET

FDTCA22KXE4R CONTROL AND PARTS SET

Available Parts

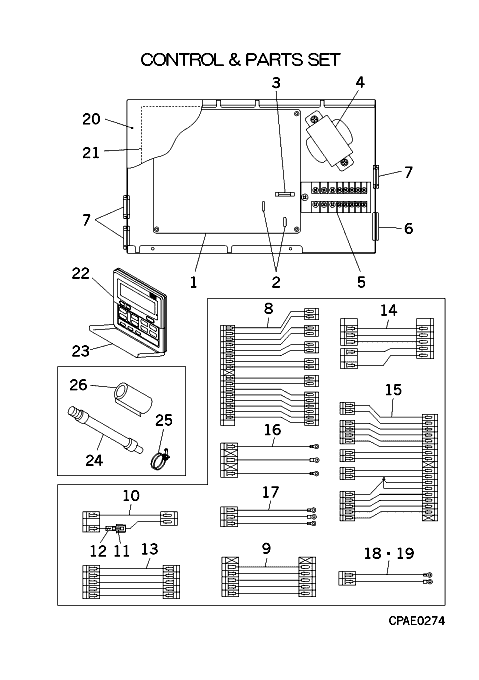

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-19] PJA501A750F CONTROL UNIT Contact Notes: !   Contact
  • [1-3] PJA505A160ZA PWB ASSY In Stock Notes: ONLY FOR SUPPLY PARTS
  • [2] SSA555B022A VARISTOR Contact   Contact
  • [3] SSA564A116G FUSE(CURRENT) In Stock Notes: 3.15 AMP FUSE, 3.15A Show Image
  • [4] SSA554A455 TRANSFORMER In Stock
  • [5] SSA561B716DG BLOCK TERMI Contact   Contact
  • [6] S751W25X GROMMET In Stock Notes: D30 Show Image
  • [7] SSA947B014A GROMMET Contact   Contact
  • [8] PJA504A750 HARNESS ASSY(V,LOW Contact Notes: CNC-CNI2,CNH2,CNN3,CNN4,CNN5,CNA2   Contact
  • [9] PJA504A753 HARNESS Contact Notes: CNM3-CNM4   Contact
  • [10-12] PJA504A732A WIRING(DM) Contact Notes: CNR-CNR2   Contact
  • [11] SSA564A139 FUSE(CURRENT) In Stock Notes: F 0.16A, 0.16A Show Image
  • [12] RWC564B002 HOLDER,FUSE In Stock Show Image
  • [13] PJA504A755 WIRING(LM) In Stock Notes: CNJ-CNJ2 Show Image
  • [14] PJA504A708C WIRING In Stock Notes: CNM2,CNM1-CNM3 Show Image
  • [15] PJA504A757 WIRING ASSY(V,LOW) Contact Notes: CNI,CNH,CNN1,CNN2,CNA-CNC   Contact
  • [16] PJA504A758 WIRING(TB) Contact Notes: CNW0-CTRL BOX EARTH   Contact
  • [17] PJA504A714B WIRING (TB,X In Stock Notes: CNB-TB X,TB Y,TB Z Show Image
  • [18] PJA504A717A WIRING(TB,AB) Contact Notes: CNK1-TB A,TB B   Contact
  • [19] PJA504A716 WIRING(CNU) Contact Notes: CNU-TB1 1,TB2 2   Contact
  • [20-21] PJA142A752B LID ASSY,CONTROL B Contact   Contact
  • [21] PJA011G752 LABEL,WIRING Contact Notes: !   Contact
  • [22-23] PJA502A700AC WALL CONTROLLER Out of Stock Substitute: RC-E1R Notes: RC-E1 / RC-E1R - 3 WIRE, X-Y-Z, RC-E1R
  • [23] PJA129A708 COVER Z Contact   Contact
  • [24] SSA423A070 HOSE, DRAIN In Stock Show Image
  • [24-26] PJA008A308V PARTS SET Contact   Contact
  • [25] V300Y38 CLAMP In Stock Notes: CLAMP Show Image
  • [26] PJA153B007 INSULATION,PIPE Contact   Contact
  • [27] PJA011F753A LABEL,MODEL NAME Contact Notes: !   Contact
SKU: FDTCA22KXE4R CONTROL AND PARTS SET Category:
