FDTC56KXZE1/F FAN ASSY AND CABINET

FDTC56KXZE1/F FAN ASSY AND CABINET

Available Parts

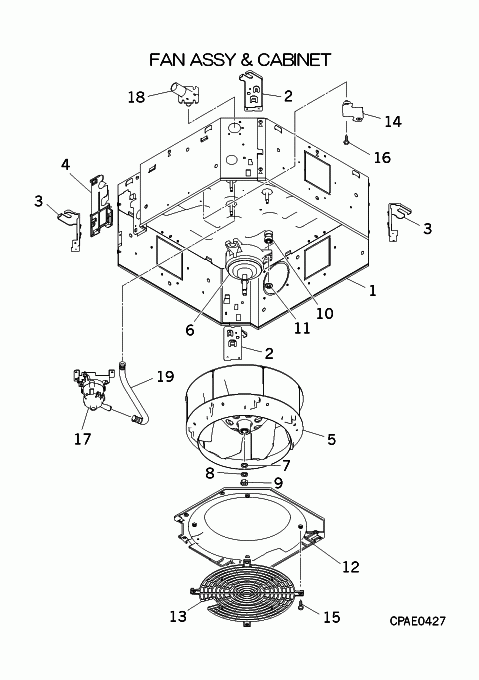

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-4] PJF100A500 CABINET ASSY Contact Notes: !   Contact
  • [2] PJF032A500 HOLDER Contact   Contact
  • [3] PJF032A500A HOLDER Contact   Contact
  • [4] PJF132A501 LID ASSY In Stock
  • [5] SSA431J031 FAN,TURBO In Stock
  • [6] SSA512T095B MOTOR,DC In Stock
  • [7] W205H10 WASHER In Stock Notes: 1PC ONLY Show Image
  • [8] W220R10 WASHER In Stock Notes: 1PC ONLY Show Image
  • [9] N001A10 NUT In Stock Notes: 1PC Show Image
  • [10] SSA941C309 CUSHION, RUB In Stock Notes: 1PC ONLY Show Image
  • [11] SSA914C015 NUT FLANGE In Stock Notes: 1PC Show Image
  • [12] PJF433A501 BELLMOUTH Contact   Contact
  • [13] PJF131A500 GUARD,FAN In Stock
  • [14] PJF129A511 COVER ASSY(FM) In Stock
  • [15] W011D04X008 TAP SCREW In Stock Notes: 1PC ONLY, 4X8
  • [16] W011D04X012 TAP-SCREW Contact Notes: 1PC ONLY, 4X12   Contact
  • [17] PJF451A500 PUMP ASSY,DRAIN In Stock
  • [18] PJF422C002 SOCKET ASSY,DRAIN Out of Stock
  • [18-19] PJF422C002 SOCKET ASSY,DRAIN Out of Stock
  • [19] SSA423A100 HOSE,DRAIN In Stock
  • [20] PSA423A004 SOCKET ASSY In Stock Substitute: PSA423A004A Notes: SEE E: CONTROL & PARTS SET Show Image
  • [21] V300Y32 HOSE CLAMP Contact Notes: SEE E: CONTROL & PARTS SET   Contact
SKU: FDTC56KXZE1/F FAN ASSY AND CABINET Category:
