FDTC50VF/A FAN ASSY AND CABINET

Name: FDTC50VF/A FAN ASSY AND CABINET
SKU: FDTC50VF/A FAN ASSY AND CABINET
Availability: InStock

FDTC50VF/A FAN ASSY AND CABINET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

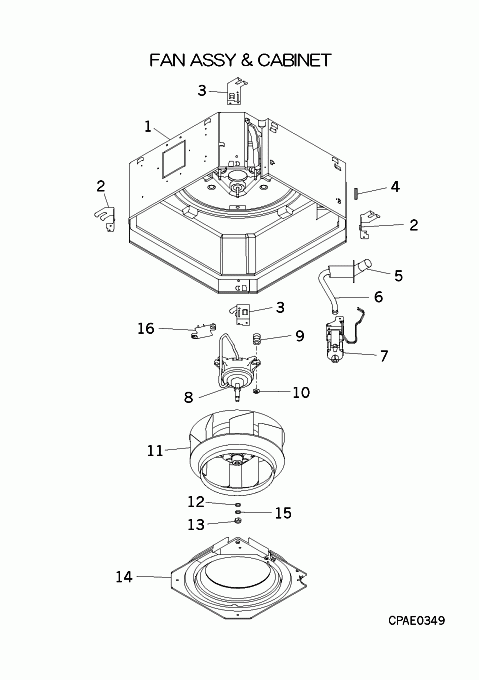

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Contact

PJA100A780

CABINET ASSY

Contact

[2] Contact

PJA032A780

HOLDER

Contact

[3] Contact

PJA032A780A

HOLDER

Contact

[4] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[5] In Stock

SSA422C107

SOCKET

[5-6] Out of Stock

PJF422C001

ELBOW, DRAIN SOCKET ASSY

Notes: SOCKET ASSY-NOT DRAIN HOSE (MOSTLY INTERNAL FITTING)

[6] In Stock

SSA423A100

HOSE,DRAIN

[7] In Stock

PJA451A780

PUMP ASSY,DRAIN

Show Image

[8] In Stock

SSA512T095C

MOTOR.DC

[9] In Stock

SSA941C309A

CUSION RUBBER

Notes: 1pc only - SOLD INDIVIDUALLY

[10] In Stock

SSA914C015

NUT FLANGE

Notes: 1pc Show Image

[11] In Stock

SSA431J024

FAN,TURBO

[12] In Stock

W205H10

WASHER

Notes: 1pc ONLY Show Image

[13] In Stock

N001A10

NUT

Notes: 1pc Show Image

[14] Contact

PJA433A780

BELLMOUTH ASSY

Contact

[15] In Stock

W220R10

WASHER

Notes: 1pc ONLY Show Image

[16] Contact

PJA129A780

PLATE

Contact

[17] In Stock

SSA423A101

HOSE,DRAIN

Notes: SEE D: CONTROL & PARTS SET Show Image

[18] In Stock

V300Y38

CLAMP

Notes: SEE D: CONTROL & PARTS SET, CLAMP Show Image

SKU: FDTC50VF/A FAN ASSY AND CABINET Category: Uncategorised
