FDTC45KXZE3-W/1 CONTROL AND PARTS SET

FDTC45KXZE3-W/1 CONTROL AND PARTS SET

FDTC45KXZE3-W/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

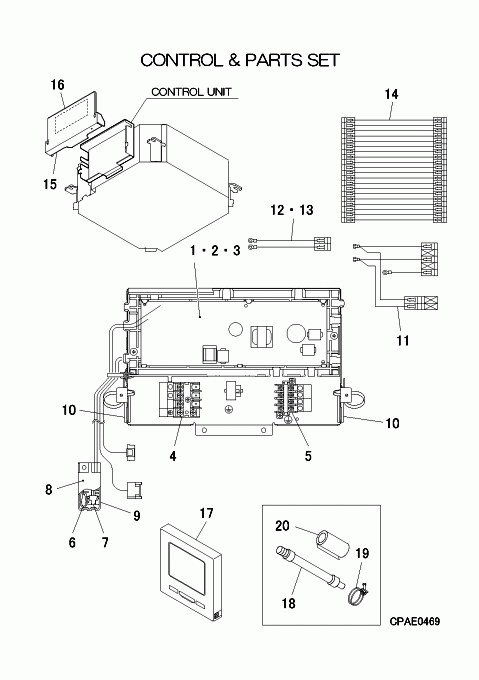

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-14] Contact
PJF501A501GF
CONTROL UNIT
Contact
Notes: !
[1-3] Contact
PJA505A266AR
PWB ASSY(MAIN)
Contact
Notes: ONLY FOR SUPPLY PARTS
[2] In Stock
SSA564A149AF
FUSE (CURRENT)
Notes: F1 3.15A
[3] In Stock
SSA564A149AC
FUSE(CURRENT)
Notes: F2 2A, 2 amp fuse
[4] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[5] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[6] In Stock
PSA551A001HA
SENSOR ASSY
Notes: THI-A Show Image
PSA551A001HA
[7] In Stock
SSA551B017G
SENSOR(HUMIDITY)
Notes: HS, LENGTH 52.5CM Show Image
SSA551B017G
[8] Contact
PJF129A510
COVER,HOLDER
Contact
[9] Contact
PJF129A509
BASE,HOLDER
Contact
[10] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[11] Contact
PJF504A503B
WIRING(TB,POWER)
Contact
[12] Contact
PJF504A047B
WIRING(TB,XY)
Contact
Notes: TB2 X,TB2 Y- CNB PWB
[13] In Stock
PJF504A010L
WIRING(TB,AB)
Notes: TB2 A,TB2 B- CNK1 PWB, LENGTH 11.5CM Show Image
PJF504A010L
[14] In Stock
PJF504A001F
WIRING(LM)
Notes: CNJ2- CNJ PWB, approx. 37cm long. Show Image
PJF504A001F
[15] In Stock
PJF142A502
LID,CONTROL BOX
[16] Contact
PJF011G504
LABEL,WIRING
Contact
Notes: !
[17] Contact
PJZ502A031AH
CONTROL ASSY,REMOT
Contact
Notes: !RC-EX3D
[18] In Stock
PSA423A004A
HOSE ASSY, DRAIN
Notes: LENGTH 18CM Show Image
PSA423A004A
[18-20] In Stock
PSA008A427A
PARTS SET(A)
Notes: includes Drain hose, clamp & insulation
[19] In Stock
V300Y32
HOSE CLAMP
[20] Contact
SSA153B022BH
INSULATION,PIPE
Contact
[21] Contact
PJF011F511D
LABEL,MODEL NAME
Contact
Notes: !
SKU: FDTC45KXZE3-W/1 CONTROL AND PARTS SET Category:
