FDTC45KXZE1/F CONTROL AND PARTS SET

FDTC45KXZE1/F CONTROL AND PARTS SET

Available Parts

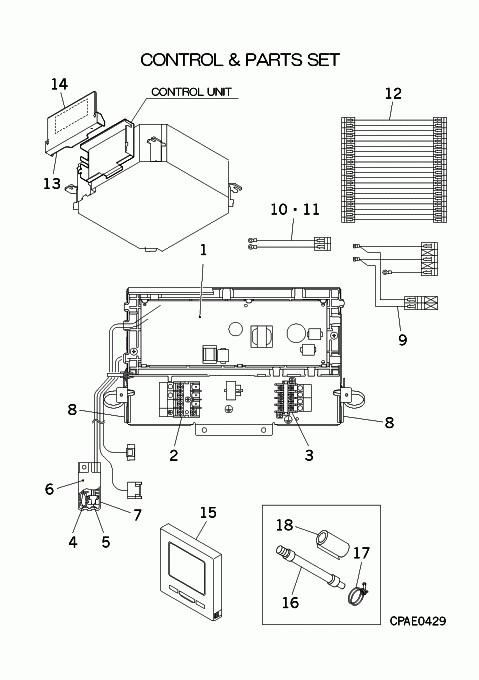

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA505A266AG PWB ASSY(MAIN) In Stock Notes: ONLY FOR SUPPLY PARTS
  • [1-12] PJF501A501DF CONTROL UNIT Contact Notes: !   Contact
  • [2] SSA561B702C BLOCK,TERMINAL In Stock Notes: TB1, TB1
  • [3] SSA561B720A BLOCK,TERMINAL In Stock Notes: TB2, TB2 Show Image
  • [4] PSA551A001HA SENSOR ASSY In Stock Notes: THI-A Show Image
  • [5] SSA551B017G SENSOR(HUMIDITY) In Stock Notes: HS
  • [6] PJF129A510 COVER,HOLDER Contact   Contact
  • [7] PJF129A509 BASE,HOLDER Contact   Contact
  • [8] S751W25X GROMMET In Stock Notes: D30 Show Image
  • [9] PJF504A504 WIRING(TB,POWER) Contact   Contact
  • [10] PJF504A047B WIRING(TB,XY) Contact Notes: TB2 X,TB2 Y- CNB PWB   Contact
  • [11] PJF504A010L WIRING(TB,AB) In Stock Notes: TB2 A,TB2 B- CNK1 PWB
  • [12] PJF504A001F WIRING(LM) Contact Notes: CNJ2- CNJ PWB   Contact
  • [13] PJF142A502 LID,CONTROL BOX Contact   Contact
  • [14] PJF011G502 LABEL,WIRING Contact Notes: !   Contact
  • [15] PJZ502A031AC ADVANCED WIRED REMOTE Contact Substitute: RC-EXZ3A Notes: ECO TOUCH, RC-EX3A   Contact
  • [16] PSA423A004 SOCKET ASSY In Stock Substitute: PSA423A004A Show Image
  • [16-18] PSA008A427A PARTS SET(A) Contact   Contact
  • [17] V300Y32 HOSE CLAMP Contact   Contact
  • [18] SSA153B022BH INSULATION,PIPE Contact   Contact
  • [19] PJF011F503BD LABEL,MODEL NAME Contact Notes: !   Contact
SKU: FDTC45KXZE1/F CONTROL AND PARTS SET Category:
