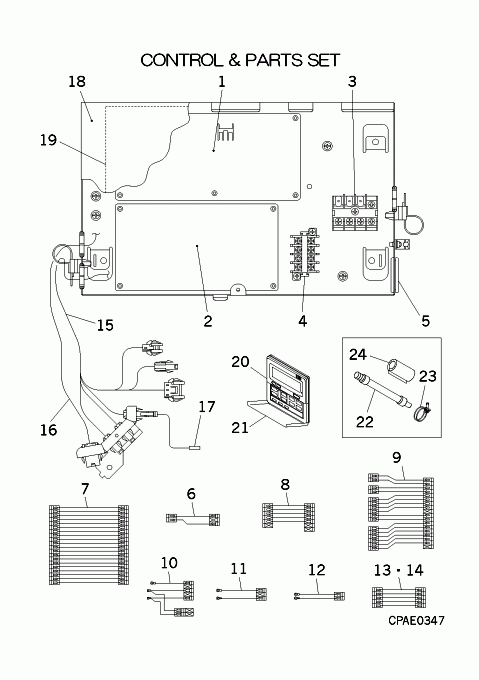

FDTC45KXE6B/1 CONTROL AND PARTS SET

FDTC45KXE6B/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock
PJA505A200DA
PWB (POWER)
Notes: ONLY FOR SUPPLY PARTS, POWER PCB - PLUGS INTO FAN MOTOR Show Image
PJA505A200DA
[1-14] Contact
PJA501A780BF
Contact
Notes: !
[2] Contact
PJA505A202CB
PWB ASSY
Contact
Notes: ONLY FOR SUPPLY PARTS
[3] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[6] In Stock
PJA504A762A
WIRING(DM)
Notes: CNR2- CNR PWB Show Image
PJA504A762A
[7] In Stock
PJF504A001A
WIRING(LM)
Notes: CNJ2- CNJ PWB
[8] In Stock
PJA504A763
WIRING(FM)
Notes: CNM3- CNM PWB Show Image
PJA504A763
[9] Contact
PJA504A764
WIRING(V,LOW)
Contact
Notes: CNI PWB,CNH PWB,CNN PWB,CAN PWB- CNC
[10] Contact
PJF504A008A
WIRING(TB,POWER)
Contact
Notes: CONT E,TB1 1,TB1 2- CNW0 PWB,CNU
[11] Out of Stock
PJF504A006D
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y- CNB PWB. DOES NOT PLUG INTO RECEIVER PWB Show Image
PJF504A006D
[12] Contact
PJF504A010C
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[13] In Stock
PJF504A003B
WIRING(PWB)
Notes: CNW4 PWB- CNW1 PWB Show Image
PJF504A003B
[14] In Stock
PJF504A003C
WIRING(PWB)
Notes: CNW3 PWB- CNW2 PWB Show Image
PJF504A003C
[15] Contact
PJA504A773B
HARNESS ASSY(V,LOW
Contact
Notes: CNC- CNI2 FS,CNH2 THI-A,CNN2 THI-R1 2 3,CNA2 EEV
[16] Out of Stock
PJA504A753A
HARNESS ASSY(MOTOR
Notes: CNM3- CNM4 Show Image
PJA504A753A
[17] In Stock
PJA551A010Z
SENSOR
Notes: THI-A
[18] Out of Stock
PJA142A781
LID,CONTROL BOX
Substitute: OUT OF PRODUCTION
[19] Contact
PJA011G782
LABEL,WIRING
Contact
Notes: !
[20-21] Out of Stock
PJA502A800C
Wired Remote Control
Substitute: PJA502A800BC Notes: RC-E3, RC-E3 / 2 WIRE ***sales item - contact sales***
[21] Contact
PJA129A708
COVER Z
Contact
[22] In Stock
SSA423A101
HOSE,DRAIN
Show Image
SSA423A101
[22-24] Contact
PJF008A001C
PARTS SET
Contact
[23] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
[24] Contact
PJA153B007
INSULATION,PIPE
Contact
[25] Contact
PJA011F783D
Contact
Notes: !
SKU: FDTC45KXE6B/1 CONTROL AND PARTS SET Category:
