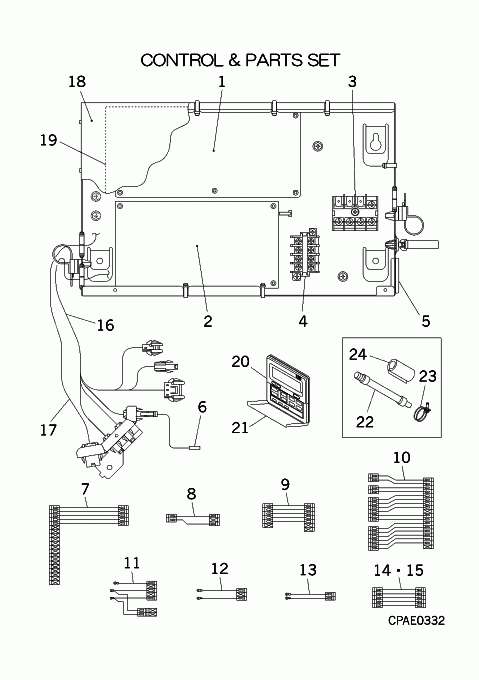

FDTC45KXE6 CONTROL AND PARTS SET

FDTC45KXE6 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock
PJA505A200DA
PWB (POWER)
Notes: ONLY FOR SUPPLY PARTS, POWER PCB - PLUGS INTO FAN MOTOR Show Image
PJA505A200DA
[1-17] Contact
PJA501A753AF
CONTROL UNIT
Contact
Notes: !
[2] In Stock
PJA505A202BB
PWB ASSY
Notes: ONLY FOR SUPPLY PARTS, CONTROL PCB - DOES NOT PLUG INTO FAN MOTOR Show Image
PJA505A202BB
[3] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[6] In Stock
PJA551A010Z
SENSOR
Notes: THI-A
[7] Contact
PJA504A762
WIRING(DM)
Contact
Notes: CNR2-CNR PWB
[8] Contact
PJA504A761
WIRING(LM)
Contact
Notes: CNJ PWB-CNJ2
[9] In Stock
PJA504A763
WIRING(FM)
Notes: CNM3-CNM PWB, CNM3- CNM PWB Show Image
PJA504A763
[10] Contact
PJA504A764
WIRING(V,LOW)
Contact
Notes: CNI PWB,CNH PWB,CNN PWB,CNA PWB-CNC, CNI PWB,CNH PWB,CNN PWB,CAN PWB- CNC
[11] Contact
PJF504A008A
WIRING(TB,POWER)
Contact
Notes: CONT E,TB1 1,TB1 2-CNW0 PWB,CNU, CONT E,TB1 1,TB1 2- CNW0 PWB,CNU
[12] Out of Stock
PJF504A006D
WIRING(TB,XY)
Notes: TB2 X,TB2 Y-CNB PWB, TB2 X,TB2 Y- CNB PWB. DOES NOT PLUG INTO RECEIVER PWB Show Image
PJF504A006D
[13] Contact
PJF504A010C
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B-CNK1 PWB, TB2 A,TB2 B- CNK1 PWB
[14] In Stock
PJF504A003B
WIRING(PWB)
Notes: CNW4 PWB-CNW1 PWB, CNW4 PWB- CNW1 PWB Show Image
PJF504A003B
[15] In Stock
PJF504A003C
WIRING(PWB)
Notes: CNW3 PWB-CNW2 PWB, CNW3 PWB- CNW2 PWB Show Image
PJF504A003C
[16] Contact
PJA504A773
HARNESS ASSY(V,LOW
Contact
[17] Out of Stock
PJA504A753A
HARNESS ASSY(MOTOR
Notes: CNM3-CNM4, CNM3- CNM4 Show Image
PJA504A753A
[18-19] Contact
PJA142A754
LID ASSY,CONTROL B
Contact
[19] Contact
PJA011G754
LABEL,WIRING
Contact
Notes: !
[20-21] Out of Stock
PJA502A800C
Wired Remote Control
Substitute: PJA502A800BC Notes: RC-E3, RC-E3 / 2 WIRE ***sales item - contact sales***
[21] Contact
PJA129A708
COVER Z
Contact
[22] In Stock
SSA423A101
HOSE,DRAIN
Show Image
SSA423A101
[22-24] Contact
PJA008A308AC
PARTS SET
Contact
[23] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
[24] Contact
PJA153B007
INSULATION,PIPE
Contact
[25] Contact
PJA011F755D
LABEL,MODEL NAME
Contact
Notes: !
