FDTC40V/B PANEL ASSY

FDTC40V/B PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

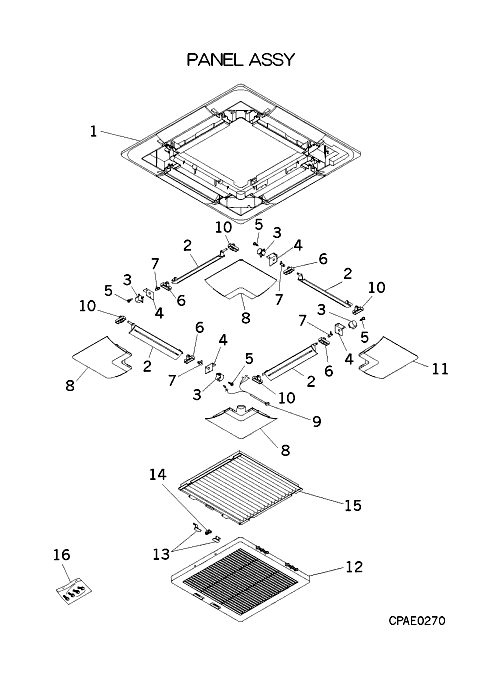

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA122A752
PANEL,FRONT
[1-11] Contact
PJA122A751
PANEL ASSY,FRONT
Contact
Notes: !
[1-16] Contact
PJA122A750B
PANEL ASSY,FRONT
Contact
Notes: !TC-PSA-24W-ER(A)
[2] In Stock
PJA436A751
LOUVER,BLOW
PJA436A751
[2-7] In Stock
PJA436A750
LOUVER ASSY
PJA436A750
[3] In Stock
SSA512T158
MOTOR STEPPING
SSA512T158
[3-5] In Stock
PJA512T750
MOTOR ASSY
PJA512T750
[4] Contact
PJA116A756
BRACKET
Contact
[5] Contact
W006D04X008
TAP-SCREW,CRS-PAN
Contact
Notes: 4X8, 1pc ONLY, 4X8
[6] Contact
PJA129A750
CLAMP
Contact
[7] In Stock
PJA144A750
CRANK(A)
PJA144A750
[8] In Stock
PJA132A753
LID ASSY,CO
PJA132A753
[9] Contact
PJA504A759
WIRING ASSY
Contact
[10] Contact
PJA129A750
CLAMP
Contact
[11] Contact
PJA132A753A
LID ASSY,CORNER
Contact
Substitute: PJA132A753B
[12-14] In Stock
PJA435A750
GRILLE ASSY
[13] In Stock
PJA129A753
STOPPER,G
PJA129A753
[14] In Stock
PJA129A755
STOPPER,F
PJA129A755
[15] In Stock
PJA437A750
FILTER,AIR
Notes: W356.5XD363.2(T25)
[16] In Stock
PJA006A750
PARTS SET
Notes: 4 large bolts with metal & rubber washers, plastic clip/hinge, metal chain & small screws
