FDTC40V/B HEAT EXCH. ASSY

FDTC40V/B HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

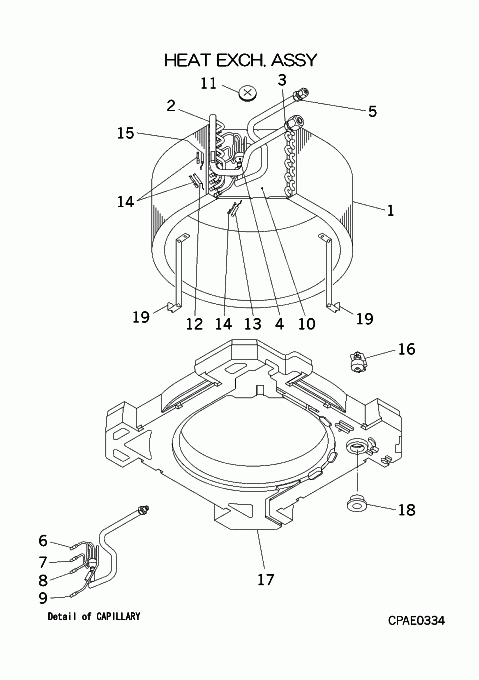

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJA311A750
HEAT EXCH(AIR)
Contact
Notes: !
[1-15] Contact
PJA301A752A
HEAT EXCH ASSY(AIR
Contact
[2-3] Contact
PJA315D750C
HEADER ASSY,GAS
Contact
Notes: !
[3] In Stock
SSA323F012B
UNION
Notes: GAS
[4] Out of Stock
SSA315A252A
DISTRIBUTOR
Notes: !
[4-9] Contact
PJA315A752A
DISTRIBUTOR ASSY
Contact
[5] Contact
SSA323F075
UNION
Contact
Notes: LIQ.
[6] Contact
PJA315B956
CAPILLARY
Contact
Notes: !D3.0XD4.0 L100
[7] Contact
PJA315B956A
CAPILLARY
Contact
Notes: !D3.0XD4.0 L170
[8] Contact
PJA315B956B
CAPILLARY
Contact
Notes: !D3.0XD4.0 L150
[9] Contact
PJA315B956C
CAPILLARY
Contact
Notes: !D3.0XD4.0 L210
[10] Contact
PJA141A750A
PLATE ASSY,BAFFLE
Contact
[11] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[12] In Stock
PJA551A005
SENSOR
Notes: THI-R1, THI-R Show Image
PJA551A005
[13] In Stock
PJA551A005CB
SENSOR(TEMP
Notes: THI-R2, THI-R2(CAPILLARY)
[14] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[15] In Stock
PSA551A007B
SENSOR
Notes: THI-R3 Show Image
PSA551A007B
[16] In Stock
SSA536A017AD
SWITCH,FLOAT
Notes: FS
[17-18] Out of Stock
PJA454A750A
PAN ASSY,DR
[18] Contact
SSA326A022
PLUG
Contact
[19] Contact
PJA116A754
BRACKET
Contact
