Parts List
Key:
Instock.
Nilstock.
Contact MRE.

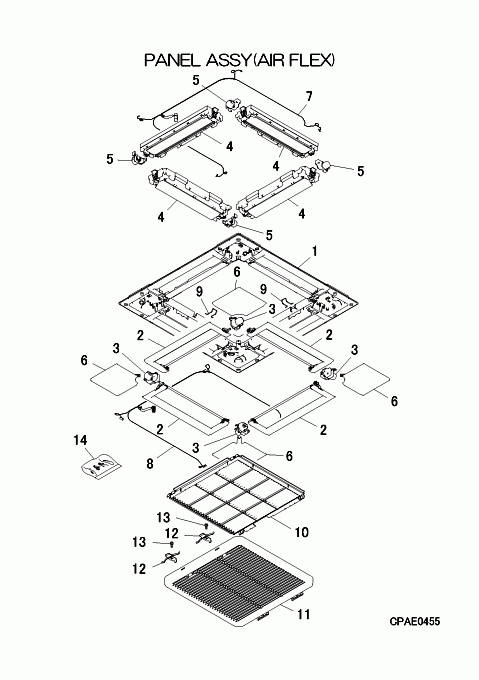

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1]
In Stock
PJF122A501
PANEL,FRONT
[1-14]
Contact
PJF122F500CB
PANEL ASSY,FRONT
Contact
[1-9]
Contact
PJF122A500A
PANEL ASSY,FRONT
Contact
[2]
In Stock
PJF436A500
LOUVER ASSY(AIR)
[3]
Contact
PJF129A500
BOX ASSY,GEAR
Contact
[4]
Contact
PJF436A503
LOUVER ASSY,BLOW
Contact
[5]
In Stock
PJF512T500
MOTOR ASSY(LOUVER)
[6]
In Stock
PJF132A500
LID,CORNER
[7]
In Stock
PJF504A500A
WIRING(LM)
Notes: LM1,LM2,LM3,LM4- CNJ3, LENGTH 103CMShow Image
[8]
In Stock
PJF504A501
WIRING(AM,PWB)
[9]
Contact
PJF962C500
WIRE
Contact
[10]
In Stock
PJF437A500
FILTER,AIR
[11]
Contact
PJF435A501C
GRILLE,AIR INLET
Contact
Notes: Grid shape (Straight Lines)
[11-13]
Contact
PJF435A500C
GRILLE ASSY,INLET
Contact
Notes: GRID SHAPE (STRAIGHT LINES)
[12]
Contact
PJF129A517
STOPPER(GRILLE)
Contact
[13]
In Stock
W011D04X010
TAP-SCREW
Notes: 4X10, ***ONE SCREW ONLY*** 1pc ONLYShow Image
[14]
Contact
PJF006A001M
PARTS SET
Contact
