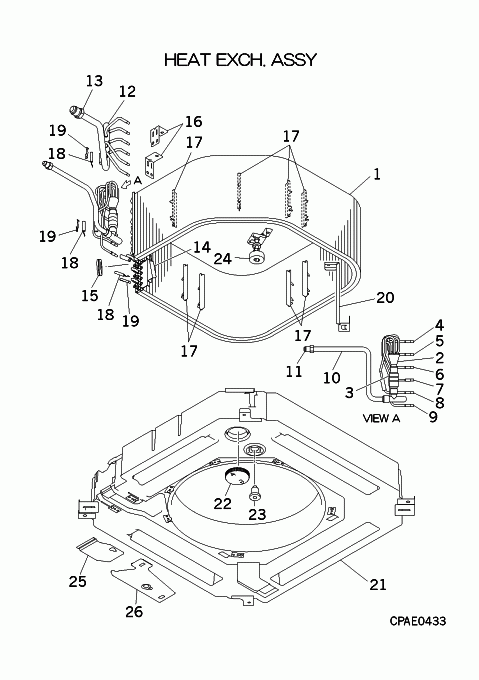

FDTC25VH1/1 HEAT EXCH. ASSY

FDTC25VH1/1 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-19] Out of Stock
RWA301A004A
HEAT EXCH ASSY(AIR
[2] Contact
SSA315A306AD
DISTRIBUTOR
Contact
Notes: !
[2-9] Contact
PJF315A503A
DISTRIBUTOR ASSY
Contact
[3] In Stock
SSA357A051D
STRAINER
Show Image
SSA357A051D
[4] Contact
PJF315B502A
CAPILLARY
Contact
Notes: !D3.0XD4.0 L120
[5] Contact
PJF315B502B
CAPILLARY
Contact
Notes: !D2.2XD4.0 L160
[6] Contact
PJF315B502G
CAPILLARY
Contact
Notes: !D2.6XD4.0 L140
[7] Contact
PJF315B502H
CAPILLARY
Contact
Notes: !D1.8XD4.0 L160
[8] Contact
PJF315B502J
CAPILLARY
Contact
Notes: !D2.2XD4.0 L260
[9] Contact
PJF315B502K
CAPILLARY
Contact
Notes: !D2.0XD4.0 L260
[10-11] Contact
PJF321A500
PIPING ASSY
Contact
[11] Contact
SSA323F092
UNION,SOLDER
Contact
[12-13] Contact
RWA315D004
HEADER ASSY,GAS
Contact
Notes: !
[13] In Stock
SSA323F088
UNION(SLD)
Notes: LENGTH 2.6CM Show Image
SSA323F088
[14-15] Contact
PJF141A500
PLATE ASSY,BAFFLE
Contact
[15] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[16] Contact
PJF116A501
BRACKET(PLATE,SIDE
Contact
[17] Contact
PJF129A514A
DIRECTOR,AIR
Contact
[18] In Stock
PJF551A002P
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3 Show Image
PJF551A002P
[19] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[20] Contact
PJF116A502
BRACKET(HEAT EX)
Contact
[21-23] In Stock
PJF454A500
PAN ASSY,DRAIN
[22] In Stock
PJF129A086
CAP & NOZZLE(DRAIN
[23] Out of Stock
AHT326A002B
PLUG
[24] In Stock
PJF536A500
SWITCH ASSY,FLOAT
Notes: FS, LENGTH 71CM Show Image
PJF536A500
[25] Contact
PJF119A500
COVER ASSY(WIRING)
Contact
[26] Out of Stock
PJF129A513
COVER(CONNECTOR)
