FDTA251R CONTROL AND PARTS SET

FDTA251R CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

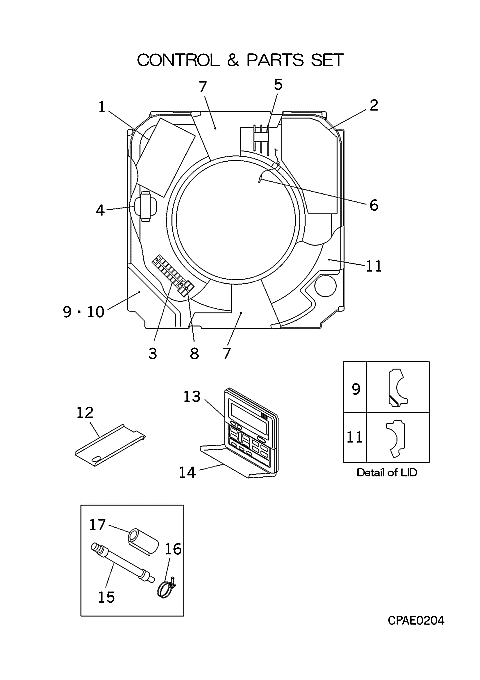

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA505A110ZD
PWB ASSY
Notes: ONLY FOR SUPPLY PARTS, "POWER" PCB Show Image
PJA505A110ZD
[1-8] Contact
PJA501A704H
CONTROL UNIT
Contact
Notes: !
[2] Out of Stock
PJA505A122ZD
PWB
Notes: ONLY FOR SUPPLY PARTS, "CONTROL" PCB Show Image
PJA505A122ZD
[3] Out of Stock
SSA561B677A
BLOCK TERMI
Notes: TB1
[4] In Stock
SSA554A438AA
TRANSFORMER
Notes: TRI Show Image
SSA554A438AA
[5] Contact
SSA552A163P
CAPACITO,RU
Contact
Notes: 4.5MF 400VAC
[6] In Stock
PJA551A700
SENSOR
Notes: THI-A, sensor has 2 plugs - 1 black that plugs into pc board and 1 red plug for sensor Show Image
PJA551A700
[7] In Stock
PJA142A703
LID BOX Z
Show Image
PJA142A703
[8] Contact
SSA561B683B
BLOCK,TERMI
Contact
Notes: TB2
[9-10] Contact
PJA142A704Y
LID ASSY,CONTROL B
Contact
[10] Contact
PJA011G715
LABEL,WIRING
Contact
Notes: !
[11] In Stock
PJA142A702
LID BOX Z
[12] Contact
PJA142A504A
COVER
Contact
[13-14] Out of Stock
PJA502A700AC
WALL CONTROLLER
Substitute: RC-E1R Notes: RC-E1R, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z
[14] Contact
PJA129A708
COVER Z
Contact
[15] In Stock
PSA006A039
HOSE SET, DRAIN
[15-17] Contact
PJA008A308S
PARTS SET
Contact
[16] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
[17] In Stock
SSA153B016BA
INSULATION,PIPE
Show Image
SSA153B016BA
[18] Contact
PJA011F717C
LABEL,MODEL NAME
Contact
Notes: !
SKU: FDTA251R CONTROL AND PARTS SET Category:
