FDTA140KXE4R CONTROL AND PARTS SET

FDTA140KXE4R CONTROL AND PARTS SET

FDTA140KXE4R CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

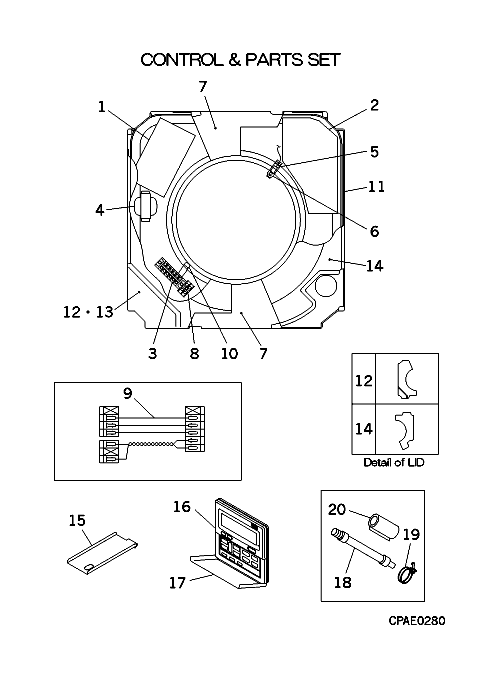

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock
PJA505A110ZH
PWB ASSY
Notes: ONLY FOR SUPPLY PARTS, OUT OF PRODUCTION - POWER BOARD - SMALLER PC BOARD - NEAR TRANSFORMER Show Image
PJA505A110ZH
[1-11] Contact
PJA501A712H
Contact
Notes: !
[2] In Stock
PJA505A157ZA
PWB ASSY
Notes: ONLY FOR SUPPLY PARTS, CONTROL BOARD - HAS DIP SWITCHES AND SENSOR PLUGS Show Image
PJA505A157ZA
[3] Contact
SSA561B717C
BLOCK,TERMINAL
Contact
Notes: TB1
[4] In Stock
SSA554A455
TRANSFORMER
Notes: TRI
[5] In Stock
PJA551A700
SENSOR
Notes: THI-A, sensor has 2 plugs - 1 black that plugs into pc board and 1 red plug for sensor Show Image
PJA551A700
[6] Contact
PJA129A710
HOLDER(THERMISTER)
Contact
Notes: FOR THI-A
[7] In Stock
PJA142A703
LID BOX Z
Show Image
PJA142A703
[8] Contact
SSA561B718A
BLOCK,TERMINAL
Contact
Notes: TB2
[9] Contact
PJA504A708
WIRING(FM)
Contact
Notes: PWB(CONT.)CNM2,PWB(POWER) CNM1-FMI CNF
[10] Contact
PJD552D003
CAPACITOR A
Contact
[11] Contact
PJA142A700
LID CONTRO
Contact
Notes: BELLMOUTH
[12-13] Contact
PJA142A704AB
LID ASSY,CONTROL B
Contact
[13] Contact
PJA011G720
LABEL,WIRING
Contact
Notes: !
[14] In Stock
PJA142A702
LID BOX Z
[15] Contact
PJA142A504A
COVER
Contact
[16-17] Out of Stock
PJA502A700AC
WALL CONTROLLER
Substitute: OUT OF PRODUCTION Notes: RC-E1R, OUT OF PRODUCTION - RC-E1 / RC-E1R - 3 WIRE, X-Y-Z
[17] Contact
PJA129A708
COVER Z
Contact
[18] In Stock
PSA006A039
HOSE SET, DRAIN
[18-20] Contact
PJA008A308S
PARTS SET
Contact
[19] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
[20] In Stock
SSA153B016BA
INSULATION,PIPE
Show Image
SSA153B016BA
[21] Contact
PJA011F713J
Contact
Notes: !
SKU: FDTA140KXE4R CONTROL AND PARTS SET Category:
