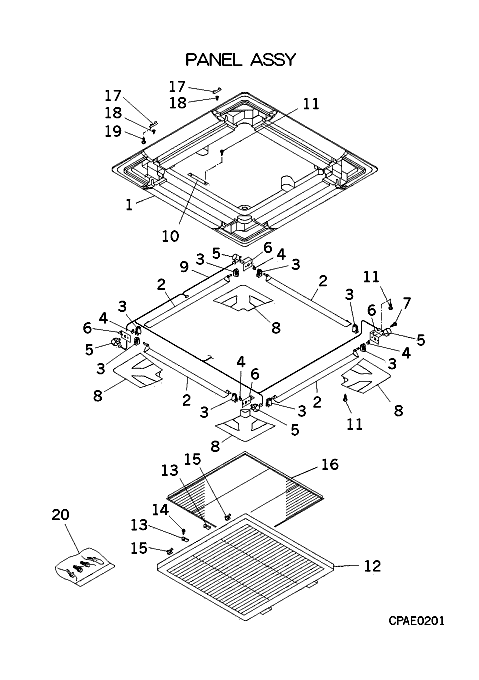

FDTA112KXE4R PANEL ASSY

FDTA112KXE4R PANEL ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA122A702D PANEL,FRONT Contact Substitute: OUT OF PRODUCTION   Contact
  • [1-11] PJA122A701K PANEL ASSY,FRONT Contact Notes: !   Contact
  • [1-20] PJA122A703N PANEL ASSY,FRONT Contact Notes: !T-PSA-35W-ER   Contact
  • [2] PJA436A702 LOUVER Out of Stock
  • [2-7] PJA436A700 LOUVWR ASY Contact   Contact
  • [3] PJA129A700 COLLER Contact Notes: ***SOLD INDIVIDUALLY***   Contact
  • [4] PJA144A700 COM Contact   Contact
  • [5] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049
  • [5-7] PJA512T700 MOTOR,ASSY In Stock Show Image
  • [6] PJA116A703 BRACKET Z Contact   Contact
  • [7] W006D04X008 TAP-SCREW,CRS-PAN Contact Notes: 1PC ONLY, 4X8, 4X8   Contact
  • [8] PJA132A704D LID,CORNER Out of Stock
  • [9] PJA504A701A WIRING ASSY Contact   Contact
  • [10] PJA116A778 BRACKET Contact   Contact
  • [11] W011D04X008 TAP SCREW In Stock Notes: 1PC ONLY, 4X8
  • [12] PJA435A700K GRILLE ASSY,INLET In Stock
  • [12-15] PJA435A700K GRILLE ASSY,INLET In Stock
  • [13] PJA129A508 ST0PPER G In Stock Show Image
  • [14] W011D04X010 TAP-SCREW In Stock Substitute: PJF006A001M Notes: 1PC ONLY, 4X10 Show Image
  • [15] PJA941F301 SPRING LEAF In Stock
  • [16] PJA437A500A FILTER In Stock Notes: W576XD567.5(T25), W576XD567.5(T25)
  • [17] SSA944D062 SUPPORT In Stock Show Image
  • [18] SSA944D063 STRIKE In Stock Show Image
  • [19] W011D03X010 TAP-SC 3X10 Contact Notes: 3X10   Contact
  • [20] PJA006A307A PARTS SET Contact   Contact
SKU: FDTA112KXE4R PANEL ASSY Category:
