FDT71KXZE1-W/A HEAT EXCH. ASSY

FDT71KXZE1-W/A HEAT EXCH. ASSY

Available Parts

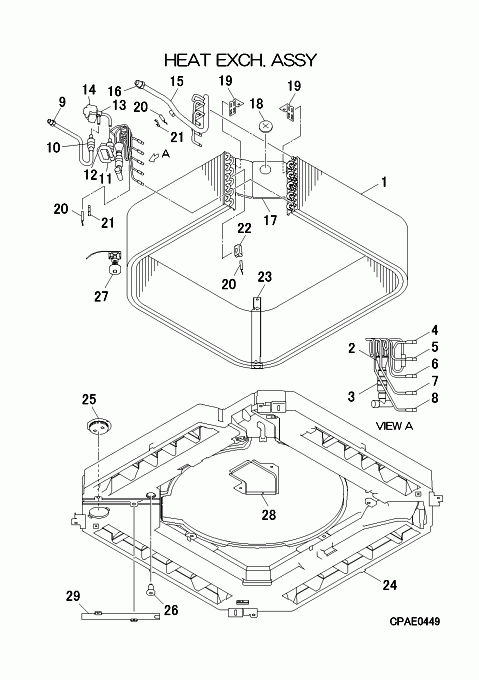

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-22] PJF301A050A HEAT EXCH ASSY(AIR) Contact   Contact
  • [2] SSA315A306AC DISTRIBUTOR Contact Notes: ?   Contact
  • [2-8] PJF315A035 DISTRIBUTOR ASSY Contact   Contact
  • [3] SSA357A051D STRAINER In Stock Show Image
  • [4] PJF315B016 CAPILLARY Contact Notes: ?f3.0xf4.0 L100   Contact
  • [5] PJF315B016A CAPILLARY Contact Notes: ?f3.0xf4.0 L120   Contact
  • [6] PJF315B016B CAPILLARY Contact Notes: ?f2.0xf4.0 L240   Contact
  • [7] PJF315B016C CAPILLARY Contact Notes: ?f1.8xf4.0 L400   Contact
  • [8] PJF315B030 CAPILLARY Contact Notes: ?f1.6xf4.0 L500   Contact
  • [9] SSA323F088 UNION(SLD) In Stock
  • [9-10] PJF321A065 PIPING ASSY Contact   Contact
  • [10] SSA357A051B STRAINER In Stock Show Image
  • [11-12] PJF321A069 PIPING ASSY Contact   Contact
  • [12] SSA357A051B STRAINER In Stock Show Image
  • [13] SSA387F086B VALVE,BODY(EXP) Contact Notes: SM   Contact
  • [14] SSA382F228AV COIL, SOLENOID In Stock Notes: EEV, FOR SM
  • [15-16] PJF315D024F HEADER ASSY,GAS Contact Notes: ?   Contact
  • [16] SSA323F092H UNION,SOLDER Contact   Contact
  • [17-18] PJF141A007A PLATE ASSY,BAFFLE Contact   Contact
  • [18] S751W25X GROMMET In Stock Notes: f30 Show Image
  • [19] PJF116A040 BRACKET(PLATE,SIDE Contact   Contact
  • [20] PJF551A002K SENSOR ASSY(TEMP) In Stock Notes: 3 REFRIGERANT (COIL) SENSORS ON SAME PLUG - THI-R1,2,3, THI-R1,2,3 Show Image
  • [21] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R2,3 Show Image
  • [22] PSA937B001 CLAMP,SENSOR Contact Notes: FOR THI-R1   Contact
  • [23] PJF116A041B BRACKET(HEAT EX) Contact   Contact
  • [24-26] PJF454A007C PAN ASSY,DRAIN Contact   Contact
  • [25] PJF129A086 CAP AND NOZZLE(DRAIN Contact   Contact
  • [26] AHT326A002B PLUG Contact   Contact
  • [27] PJF536A003 SWITCH ASSY,FLOAT In Stock Notes: FLOAT SWITCH/ LENGTH 143.5CM, FS
  • [28] PJF142A007A COVER Contact   Contact
  • [29] PJF129A083 COVER(DP) Contact   Contact
SKU: FDT71KXZE1-W/A HEAT EXCH. ASSY
