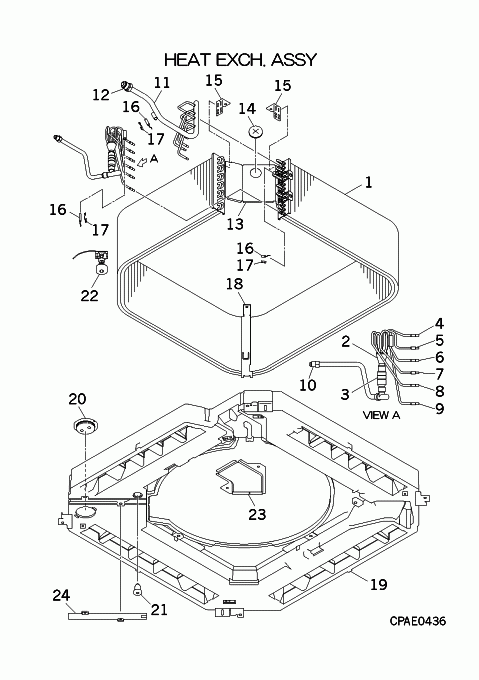

FDT60VH/1 HEAT EXCH. ASSY

FDT60VH/1 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-17] In Stock
PJF301A039
HEAT EXCH ASSY(AIR
[2] Contact
SSA315A306AD
DISTRIBUTOR
Contact
Notes: !
[2-10] In Stock
PJF315A027A
DISTRIBUTOR ASSY
[3] In Stock
SSA357A051D
STRAINER
SSA357A051D
[4] Contact
PJF315B019
CAPILLARY
Contact
Notes: !D2.8XD4.0 L120
[5] Contact
PJF315B019A
CAPILLARY
Contact
Notes: !D2.6XD4.0 L140
[6] Contact
PJF315B019B
CAPILLARY
Contact
Notes: !D2.6XD4.0 L180
[7] Contact
PJF315B019C
CAPILLARY
Contact
Notes: !D2.6XD4.0 L200
[8] Contact
PJF315B019D
CAPILLARY
Contact
Notes: !D3.0XD4.0 L240
[9] Contact
PJF315B019F
CAPILLARY
Contact
Notes: !D1.8XD4.0 L260
[10] Contact
SSA323F092
UNION,SOLDER
Contact
[11-12] Contact
PJF315D021B
HEADER ASSY,GAS
Contact
Notes: !
[12] In Stock
SSA323F012B
UNION
[13-14] Contact
PJF141A007A
PLATE ASSY,BAFFLE
Contact
[14] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[15] In Stock
PJF116A040
BRACKET(PLATE,SIDE)
[16] In Stock
PJF551A002K
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3, THI-R1,2,3 - 3 refrigerant (coil) sensors on same plug Show Image
PJF551A002K
[17] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[18] Contact
PJF116A049A
BRACKET(HEAT EX)
Contact
[19-21] In Stock
PJF454A007C
PAN ASSY,DRAIN
[20] In Stock
PJF129A086
CAP & NOZZLE(DRAIN
[21] Out of Stock
AHT326A002B
PLUG
[22] In Stock
PJF536A003
SWITCH ASSY,FLOAT
Notes: FS, FLOAT SWITCH/ LENGTH 143.5CM Show Image
PJF536A003
[23] Contact
PJF142A007A
COVER
Contact
[24] Out of Stock
PJF129A083
COVER(DP)
