FDT60VF/A PANEL ASSY

FDT60VF/A PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

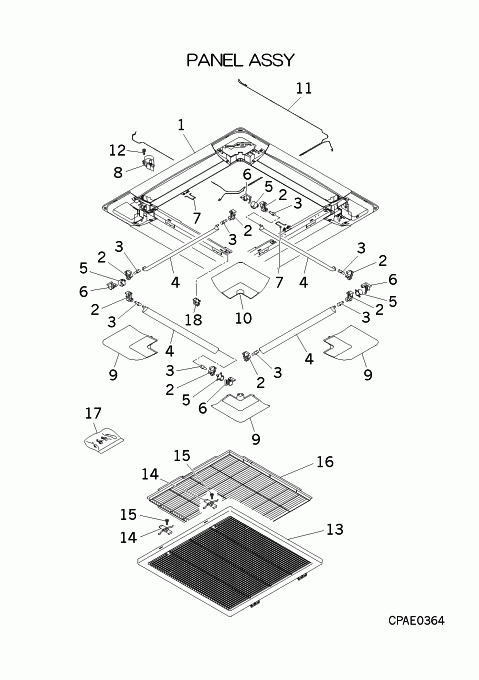

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock
PJF122A006
PANEL,FRONT
Substitute: OUT OF PRODUCTION Notes: **NOT FACIA PANEL** (ONLY HALF)
[1-12] Contact
PJF122A005HA
PANEL ASSY,FRONT
Contact
Notes: Not suitable for this model
[1-18] Contact
PJF122A009BA
PANEL ASSY,FRONT
Contact
Notes: !T-PSA-3BW-E
[2] Contact
PJF129A002
COLLAR
Contact
Notes: ***SOLD INDIVIDUALLY***
[3] Contact
PJF144A001
CRANK
Contact
Substitute: PJF144A001A
[4] In Stock
PJF436A001
LOUVER,BLOW
[5] In Stock
SSA512T158
MOTOR STEPPING
Show Image
SSA512T158
[5-6] In Stock
PJF512T001
MOTOR ASSY
Show Image
PJF512T001
[6] Contact
PJF129A003
SUPPORT(MOTOR)
Contact
[7] In Stock
PJF962C001
WIRE
Notes: U SHAPED METAL WIRE
[8] Contact
PJF129A004A
COVER ASSY
Contact
[9] In Stock
PJF132A001
LID ASSY,CORNER
Notes: DOES NOT HAVE MITSUBISHI LOGO
[10] In Stock
PJF132A001C
LID ASSY,CORNER
Notes: HAS MITSUBISHI LOGO
[11] In Stock
PJF504A014B
WIRING ASSY
Notes: LM1,LM2,LM3,LM4- CNJ2, LM1,LM2,LM3,LM4- CNJ2/ LENGTH 146CM Show Image
PJF504A014B
[12] In Stock
W011D04X010
TAP-SCREW
Notes: 4X10, ***ONE SCREW ONLY*** 1pc ONLY Show Image
W011D04X010
[13] In Stock
PJF435A003G
GRILLE,AIR INLET
[13-15] In Stock
PJF435A001D
GRILLE ASSY,INLET
[14] In Stock
PJF129A007
STOPPER
Show Image
PJF129A007
[15] In Stock
W011D04X010
TAP-SCREW
Notes: 4X10, ***ONE SCREW ONLY*** 1pc ONLY Show Image
W011D04X010
[16] In Stock
PJF437A001
FILTER,AIR
Notes: W588XD562( 17), W588XD562(T17)
[17] In Stock
PJF006A001K
PARTS SET
Notes: 4 BOLTS 3 SCREWS AND BLACK BELT Show Image
PJF006A001K
[18] In Stock
PJF523J001C
SWITCH ASSY(MICRO)
Notes: LIMIT SWTICH - FILTER DOOR PANEL SWITCH - COMES WITH HARNESS - 2 BLACK WIRES - WHITE PLUG Show Image
PJF523J001C
