FDT56KXZE1-W/A FAN ASSY AND CABINET

FDT56KXZE1-W/A FAN ASSY AND CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

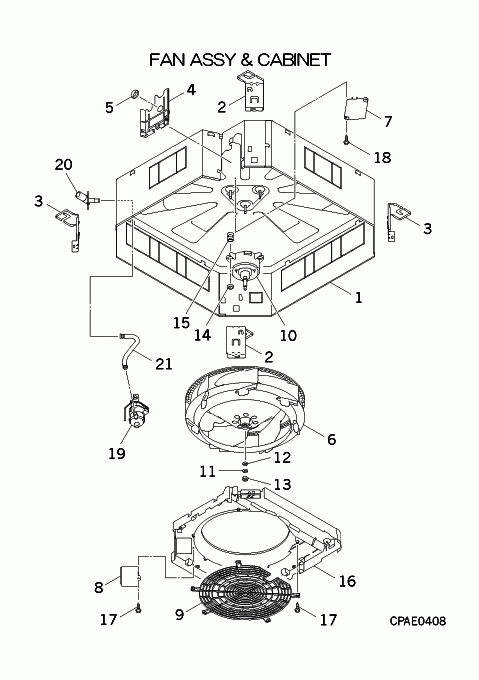

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-5] Contact
PJF100A002A
CABINET ASSY
Contact
Notes: ?
[2] Contact
PJF032A006
HOLDER
Contact
[3] Contact
PJF032A006A
HOLDER
Contact
[4-5] In Stock
PJF132A021
LID ASSY
[5] Contact
S751W20
GROMMET 5K1
Contact
Notes: f25
[6] In Stock
SSA431J030B
FAN TURBO
[7] In Stock
PJF129A013
PLATE
[8] In Stock
PJF132A020
LID,BELLMOUTH
[9] In Stock
PJF131A004
GUARD,FAN
[10] In Stock
SSA512T116B
MOTOR DC
[11] In Stock
W220R10
WASHER
Notes: 1pc ONLY Show Image
W220R10
[12] In Stock
W205H10
WASHER
Notes: 1pc ONLY Show Image
W205H10
[13] In Stock
N001A10
NUT
Notes: 1pc Show Image
N001A10
[14] In Stock
SSA914C015
NUT FLANGE
Notes: 1pc Show Image
SSA914C015
[15] In Stock
SSA941C309A
CUSION RUBBER
Notes: 1pc only - SOLD INDIVIDUALLY Show Image
SSA941C309A
[16] In Stock
PJF433A003
BELLMOUTH
[17] In Stock
W011D04X008
TAP SCREW
Notes: 4x8, 1pc ONLY Show Image
W011D04X008
[18] Contact
W011D04X012
TAP-SCREW
Contact
Notes: 4x12, 1pc ONLY
[19] In Stock
PJF451A003A
PUMP ASSY, DRAIN
Notes: DRAIN / CONDENSATE PUMP Show Image
PJF451A003A
[20] In Stock
PJF422C002A
SOCKET ASSY, DRAIN
[20-21] In Stock
PJF422C002A
SOCKET ASSY, DRAIN
[21] In Stock
SSA423A100
HOSE,DRAIN
[22] In Stock
PSA423A004A
HOSE ASSY, DRAIN
Notes: SEE D:CONTROL & PARTS SET, LENGTH 18CM Show Image
PSA423A004A
[23] Contact
V300Y32
HOSE CLAMP
Contact
Notes: SEE D:CONTROL & PARTS SET
