FDT36KXZE3-W/1 HEAT EXCH. ASSY

FDT36KXZE3-W/1 HEAT EXCH. ASSY

FDT36KXZE3-W/1 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

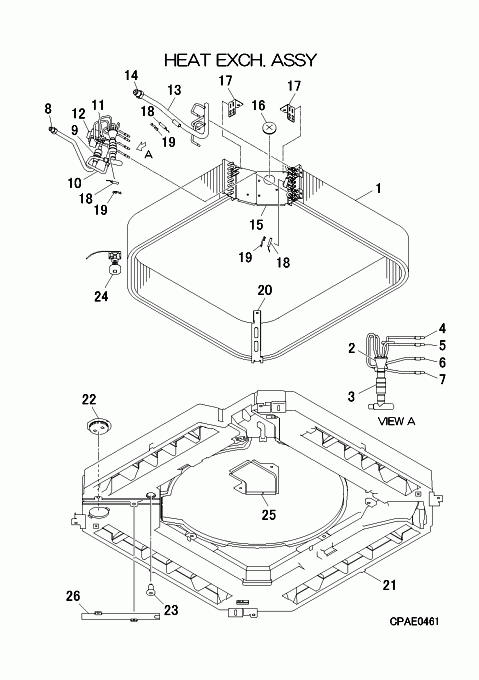

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-20] Contact
PJF301A057A
HEAT EXCH ASSY(AIR
Contact
[2] Contact
SSA315A306AB
DISTRIBUTOR
Contact
Notes: !
[2-7] Contact
PJF315A042A
DISTRIBUTOR ASSY
Contact
Notes: !
[3] In Stock
SSA357A051D
STRAINER
Show Image
SSA357A051D
[4] Contact
PJF315B043
CAPILLARY
Contact
Notes: !D2.4XD4.0 L140
[5] Contact
PJF315B043A
CAPILLARY
Contact
Notes: !D3.0XD4.0 L180
[6] Contact
PJF315B043B
CAPILLARY
Contact
Notes: !D3.0XD4.0 L240
[7] Contact
PJF315B043C
CAPILLARY
Contact
Notes: !D1.6XD4.0 L240
[8] Contact
SSA323F092
UNION,SOLDER
Contact
[8-9] Contact
PJF321A086
PIPING ASSY
Contact
[9] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[10] Contact
PJF321A092
PIPING ASSY
Contact
[11] In Stock
SSA387F086B
VALVE,BODY(EXP)
Notes: SM
[12] In Stock
SSA382F228AV
COIL, SOLENOID
Notes: FOR SM, EEV
[13-14] Contact
PJF315D021Y
HEADER ASSY,GAS
Contact
Notes: !
[14] In Stock
SSA323F012B
UNION
Show Image
SSA323F012B
[15-16] Contact
PJF141A007C
PLATE ASSY,BAFFLE
Contact
[16] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[17] In Stock
PJF116A040
BRACKET(PLATE,SIDE)
Show Image
PJF116A040
[18] Contact
PJF551A002S
SENSOR ASSY(TEMP)
Contact
Notes: THI-R1,2,3
[19] In Stock
PSA941F001
SPRING LEAF
Notes: FOR THI-R1,2,3, 1pc ONLY Show Image
PSA941F001
[20] Contact
PJF116A063D
BRACKET(HEAT EX)
Contact
[21-23] Contact
PJF454A015F
PAN ASSY,DRAIN
Contact
[22] Contact
PJF129A084
CAP(DRAIN)
Contact
[23] In Stock
AHT326A002B
PLUG
Show Image
AHT326A002B
[24] Contact
PJF536A004
SWITCH ASSY,FLOAT
Contact
Notes: FS
[25] Contact
PJF142A039
COVER
Contact
[26] Contact
PJF129A109
COVER(DP)
Contact
