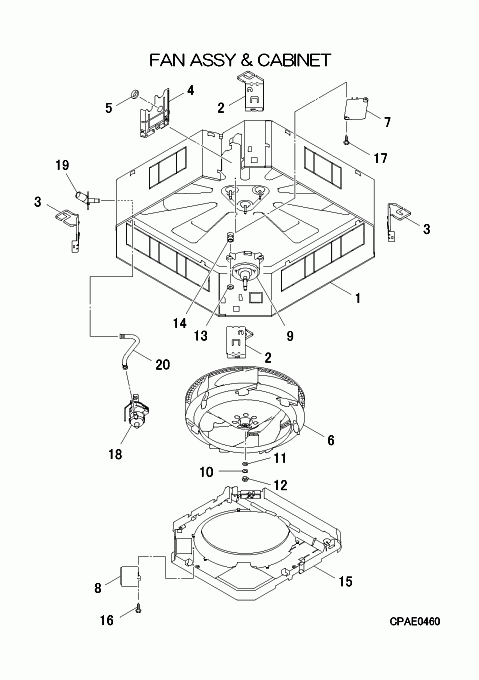

FDT36KXZE3-W/1 FAN ASSY AND CABINET

FDT36KXZE3-W/1 FAN ASSY AND CABINET

FDT36KXZE3-W/1 FAN ASSY AND CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-5] Contact
PJF100A003B
CABINET ASSY
Contact
Notes: !
[2] In Stock
PJF032A006
HOLDER
[3] In Stock
PJF032A006A
HOLDER
[4-5] In Stock
PJF132A021
LID ASSY
[5] Contact
S751W20
GROMMET 5K1
Contact
Notes: D25
[6] Contact
SSA431J034
FAN,TURBO
Contact
[7] In Stock
PJF129A013
PLATE
Show Image
PJF129A013
[8] Contact
PJF132A026
LID,BELLMOUTH
Contact
[9] Contact
SSA512T162
MOTOR,DC
Contact
[10] In Stock
W220R10
WASHER
Notes: 1pc ONLY Show Image
W220R10
[11] In Stock
W205H10
WASHER
Notes: 1pc ONLY Show Image
W205H10
[12] In Stock
N001A10
NUT
Notes: 1pc Show Image
N001A10
[13] In Stock
SSA914C015
NUT FLANGE
Notes: 1pc Show Image
SSA914C015
[14] In Stock
SSA941C309A
CUSION RUBBER
Notes: 1pc only - SOLD INDIVIDUALLY Show Image
SSA941C309A
[15] Contact
PJF433A004A
BELLMOUTH
Contact
[16] In Stock
W011D04X008
TAP SCREW
Notes: 4X8, 1pc ONLY Show Image
W011D04X008
[17] Contact
W011D04X012
TAP-SCREW
Contact
Notes: 4X12, 1pc ONLY
[18] In Stock
PJF451A003A
PUMP ASSY, DRAIN
Notes: DRAIN / CONDENSATE PUMP Show Image
PJF451A003A
[19] Contact
PSA422C001
SOCKET
Contact
[19-20] In Stock
PJF422C002A
SOCKET ASSY, DRAIN
[20] In Stock
SSA423A100
HOSE,DRAIN
[21] In Stock
PSA423A004A
HOSE ASSY, DRAIN
Notes: SEE C:CONTROL & PARTS SET, LENGTH 18CM Show Image
PSA423A004A
[22] In Stock
V300Y32
HOSE CLAMP
Notes: SEE C:CONTROL & PARTS SET
SKU: FDT36KXZE3-W/1 FAN ASSY AND CABINET Category:
