FDT28KXZE3-W/1 CONTROL AND PARTS SET

FDT28KXZE3-W/1 CONTROL AND PARTS SET

FDT28KXZE3-W/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

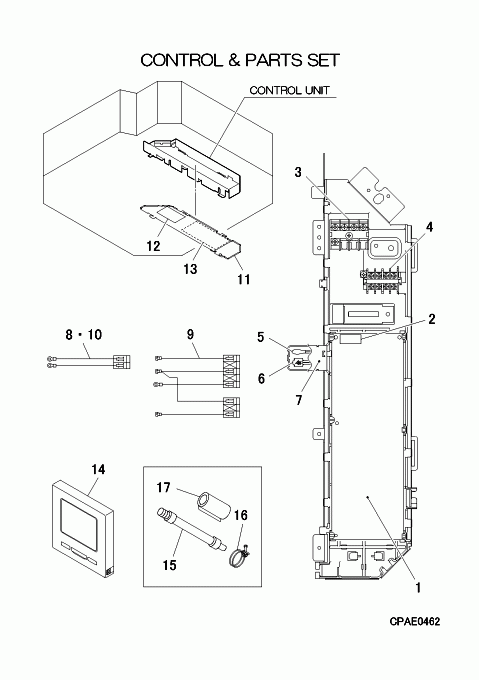

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-10] Contact
PJF501A021BB
CONTROL UNIT
Contact
Notes: !
[1-2] Contact
PJA505A303AD
PWB ASSY(MAIN)
Contact
Notes: ONLY FOR SUPPLY PARTS
[2] In Stock
SSA564A149AF
FUSE (CURRENT)
Notes: F1 3.15A
[3] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] Contact
PSA551A001GC
SENSOR ASSY
Contact
Notes: THI-A
[6] In Stock
SSA551B017B
SENSOR(HUMIDITY)
Notes: HS, LENGTH 52.5CM Show Image
SSA551B017B
[7] Contact
PMA129A002
COVER.HOLDER
Contact
[8] In Stock
PJF504A047
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB Show Image
PJF504A047
[9] Contact
PJF504A503A
WIRING(TB,POWER)
Contact
[10] Contact
PJF504A010J
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[11] Contact
PJF142A037
LID,CONTROL BOX
Contact
[12] In Stock
PSA011H046
LABEL,NOTICE
[13] Contact
PJF011G033
LABEL,WIRING
Contact
Notes: !
[14] Contact
PJZ502A031AH
CONTROL ASSY,REMOT
Contact
Notes: !RC-EX3D
[15] In Stock
PSA423A004A
HOSE ASSY, DRAIN
Notes: LENGTH 18CM Show Image
PSA423A004A
[15-17] In Stock
PSA008A427
PARTS SET(A)
Notes: Cable ties, washers, drain hose, 2x insulation, carboard temporary measurement.
[16] In Stock
V300Y32
HOSE CLAMP
[17] Contact
SSA153B022BH
INSULATION,PIPE
Contact
[18] Contact
PJF011F076B
LABEL,MODEL NAME
Contact
Notes: !
