Parts List
Key:
Instock.
Nilstock.
Contact MRE.

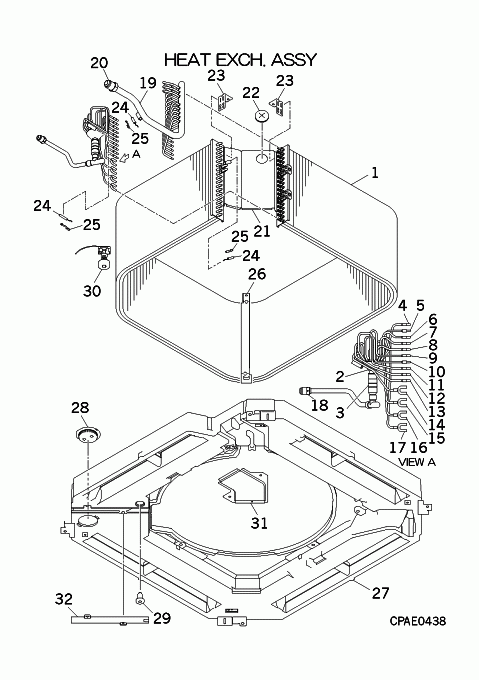

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1-25]
In Stock
PJF301A042
HEAT EXCH ASSY(AIR)
Notes: Indoor Heat Exchanger Coil
[2]
Contact
SSA315A314AN
DISTRIBUTOR
Contact
[2-18]
In Stock
PJF315A027F
DISTRIBUTOR ASSY
[3]
Contact
SSA357A051G
STRAINER
Contact
[4]
Contact
PJF315B022
CAPILLARY
Contact
[5]
Contact
PJF315B022A
CAPILLARY
Contact
[6]
Contact
PJF315B022B
CAPILLARY
Contact
[7]
Contact
PJF315B022C
CAPILLARY
Contact
[8]
Contact
PJF315B022D
CAPILLARY
Contact
[9]
Contact
PJF315B022F
CAPILLARY
Contact
[10]
Contact
PJF315B022G
CAPILLARY
Contact
[11]
Contact
PJF315B022H
CAPILLARY
Contact
[12]
Contact
PJF315B022J
CAPILLARY
Contact
[13]
Contact
PJF315B022K
CAPILLARY
Contact
[14]
Contact
PJF315B025
CAPILLARY ASSY
Contact
[15]
Contact
PJF315B025A
CAPILLARY ASSY
Contact
[16]
Contact
PJF315B025B
CAPILLARY ASSY
Contact
[17]
Contact
PJF315B025C
CAPILLARY ASSY
Contact
[18]
In Stock
SSA323F088
UNION(SLD)
[19-20]
Contact
PJF315D021H
HEADER ASSY,GAS
Contact
[20]
Contact
SSA323F092F
UNION,SOLDER
Contact
[21-22]
Contact
PJF141A007
PLATE ASSY,BAFFLE
Contact
[22]
In Stock
S751W25X
GROMMET
[23]
In Stock
PJF116A040
BRACKET(PLATE,SIDE)
[24]
In Stock
PJF551A002K
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3, THI-R1,2,3 - includes three refrigerant (coil) sensors Show Image
[25]
In Stock
PSA941F001
SPRING LEAF
[26]
Contact
PJF116A048A
BRACKET(HEAT EX)
Contact
[27-29]
In Stock
PJF454A007B
PAN ASSY,DRAIN
[28]
In Stock
PJF129A086
CAP & NOZZLE(DRAIN
[29]
In Stock
AHT326A002B
PLUG
[30]
In Stock
PJF536A003
FLOAT SWITCH
Notes: FS, FLOAT SWITCH/ LENGTH 143.5CM Show Image
[31]
Contact
PJF142A007A
COVER
Contact
[32]
In Stock
PJF129A083
COVER(DP)
