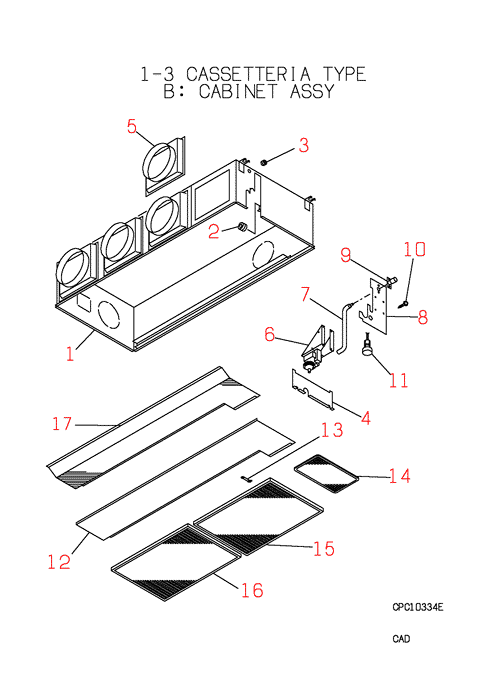

FDR1251HKXE2 CABINET ASSY

FDR1251HKXE2 CABINET ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact
PJR100A105B
CABINET ASSY
Contact
[2] In Stock
S751W30X
GROMMET V14
Show Image
S751W30X
[3] Contact
S751W09
GROMMET
Contact
[4] Contact
PJR132A101
LID
Contact
[5] In Stock
PJR438A102
JOINT DUCT
Show Image
PJR438A102
[6] Out of Stock
PJR451A111A
PUMP ASSY
Substitute: PJR451A110A
[7] Contact
SSA423A081
HOSE DRAIN
Contact
[8] Contact
PJR132A100A
LID
Contact
[9] In Stock
SSA422C078A
SOCKET
[10] Contact
SSA913D006
SCREW
Contact
Notes: 1pc ONLY
[11] In Stock
SSA536A017C
SWITCH,FLOAT
Notes: FS Show Image
SSA536A017C
[12-13] Contact
PJR111A100
PLATE BOTTO
Contact
[13] Contact
PFA144A201
LINK
Contact
[14] Contact
PJR437A101
FILTER AIR
Contact
[15] Contact
PJR437A100
FILTER AIR
Contact
[16] Contact
PJR437A100A
FILTER AIR
Contact
[17] Contact
PJR961A001B
LATH ASSY,M
Contact
