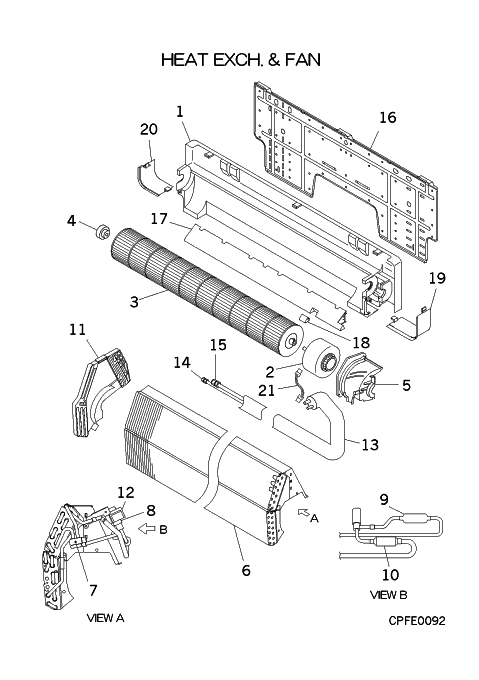

FDKA28KXE4R HEAT EXCH. AND FAN

FDKA28KXE4R HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PHA111A203A
BASE ASSY
[2] In Stock
SSA512T149
MOTOR,DC
Notes: FOR IMPELLER, COMES WITH HARNESS Show Image
SSA512T149
[3] In Stock
SSA431G040A
IMPELLER
Notes: FAN BARREL
[4] In Stock
SSA923C136
BEARING, PLANE
Notes: END BEARING Show Image
SSA923C136
[5] In Stock
RKT129A400A
COVER,MOTOR
[6-11] Contact
PHA301A238
HEAT EXCH A
Contact
[6-15] Out of Stock
PHA301A237
HEAT EX,AIR
[7] Contact
PHA315D219A
HEADER ASSY
Contact
Notes: !
[8] In Stock
SSA387F047B
EXP VALVE
Notes: SM, EXPANSION VALVE BODY Show Image
SSA387F047B
[9] In Stock
SSA357A005A
STRAINER
Show Image
SSA357A005A
[10] In Stock
SSA357A005C
STRAINER
Show Image
SSA357A005C
[11] Contact
RKT129A401
BRACKET
Contact
[12] In Stock
SSA382F210R
COIL,SOLENO
Notes: FOR SM Show Image
SSA382F210R
[13-15] Contact
PHA321A394A
PIPE ASSY
Contact
[14] Contact
SSA323F082A
UNION(SLD)
Contact
Notes: LIQ.
[15] Contact
SSA323F082
UNION
Contact
Notes: GAS
[16] In Stock
RKT032A400A
PLATE,INSTA
[17-18] In Stock
RKT132A752
LID ASSY
[18] In Stock
RKT129A753
CAP
[19] In Stock
RKT132A401B
LID,R
[20] In Stock
RKT132A402B
LID,L
Notes: Cool White Show Image
RKT132A402B
[21] Contact
RKS504A601
HARNESS
Contact
Substitute: OUT OF PRODUCTION Notes: FOR FAN MOTOR, OUT OF PRODUCTION
