FDK90KXZE3-W/1 HEAT EXCH. AND CONTROL

FDK90KXZE3-W/1 HEAT EXCH. AND CONTROL

FDK90KXZE3-W/1 HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

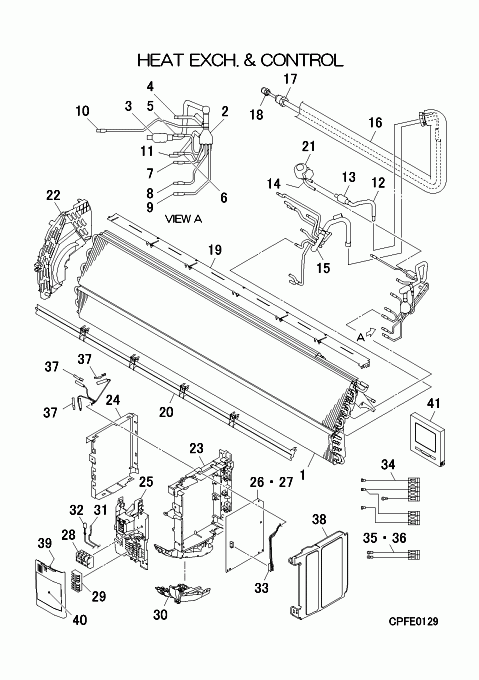

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-22] In Stock
PHA301A418A
HEAT EXCH ASSY(AIR)
[2] Contact
RSA315A006
DISTRIBUTOR
Contact
Notes: !
[2-11] Contact
PHA315A408
DISTRIBUTOR ASSY
Contact
Notes: !
[3] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[4] Contact
RLD321A023
PIPE ASSY
Contact
Notes: !D2.8XD4.0 L100
[5] Contact
PHA315B415
CAPILLARY(2)
Contact
Notes: !D2.0XD4.0 L100
[6] Contact
PHA315B407
CAPILLARY(3)
Contact
Notes: !D2.0XD4.0 L100
[7] Contact
PHA315B417
CAPILLARY(4)
Contact
Notes: !D2.4XD4.0 L80
[8] Contact
PHA315B409
CAPILLARY(5)
Contact
Notes: !D3.0XD4.0 L120
[9] Contact
PHA315B410
CAPILLARY(6)
Contact
Notes: !D3.0XD4.0 L160
[10] Contact
PHA315B418
CAPILLARY(7)
Contact
Notes: !D2.0XD4.0 L340
[11] Contact
PHA315B419
CAPILLARY(8)
Contact
Notes: !D2.0XD4.0 L100
[12-13] Contact
PHA321A503
PIPING ASSY
Contact
[13] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[14] In Stock
SSA387F074B
VALVE,BODY(EXP)
Notes: SM
[15] Contact
PHA315D404A
HEADER ASSY,GAS
Contact
Notes: !
[16-18] Contact
PHA321A509
PIPE ASSY
Contact
[17] Contact
SSA323F092H
UNION,SOLDER
Contact
Notes: FOR GAS
[18] In Stock
SSA323F091
UNION(SLD)
Notes: FOR LIQ.
[19] In Stock
RLD129A004
PLATE,BAFFLE
[20] Contact
RLD129A005
SEAL(B)
Contact
[21] Out of Stock
SSA382F228BM
COIL, SOLENOID
Notes: FOR SM
[22] In Stock
RLD129A003
BRACKET(L)
Notes: !
[23] In Stock
RLD142A003C
BOX,CONTROL
[23-24] In Stock
PHA142A401
BOX ASSY,CONTROL
Notes: !
[24] In Stock
RLD132A005A
COVER,CONTROL
Show Image
RLD132A005A
[25] Contact
PHA129A400B
COVER,BEND
Contact
[26-27] Contact
PHA505A041AJ
PWB ASSY
Contact
Notes: ONLY FOR SUPPLY PARTS
[27] In Stock
SSA564A149AH
FUSE(CURRENT)
Notes: F1 5A Show Image
SSA564A149AH
[28] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: TB1, T2 Show Image
SSA561B702B
[29] In Stock
SSA561B686L
BLOCK, TERMINAL
Notes: TB2 Show Image
SSA561B686L
[30] In Stock
RLD129A017
HOLDER,DISPLAY
[31] In Stock
PSA551A001GB
SENSOR ASSY
Notes: THI-A, LENGTH 24.8CM Show Image
PSA551A001GB
[32] In Stock
SSA551B017C
SENSOR(HUMIDITY)
Notes: HS, HUMIDITY SENSOR Show Image
SSA551B017C
[33] In Stock
PJF551A002A
SENSOR ASSY(TEMP)
Notes: THI-R, THI-R1,2,3 Show Image
PJF551A002A
[34] Contact
PJF504A036Y
WIRING(TB,POWER)
Contact
[35] In Stock
PJF504A047A
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB Show Image
PJF504A047A
[36] In Stock
PHA504A400
WIRING(TB,AB)
Notes: TB2 A,TB2 B- CNK1 PWB Show Image
PHA504A400
[37] In Stock
PSA941F001
SPRING LEAF
Notes: FOR THI-R, 1pc ONLY Show Image
PSA941F001
[38] In Stock
RLD142A001
LID,CONTROL
[39-40] In Stock
RLD132A003M
LID ASSY(TERMINAL)
Show Image
RLD132A003M
[40] Contact
RSA011H047D
LABEL,NOTICE
Contact
[41] Contact
PJZ502A031AH
CONTROL ASSY,REMOT
Contact
Notes: !RC-EX3D
[42] Contact
PHA011F420H
LABEL,MODEL NAME
Contact
Notes: !
